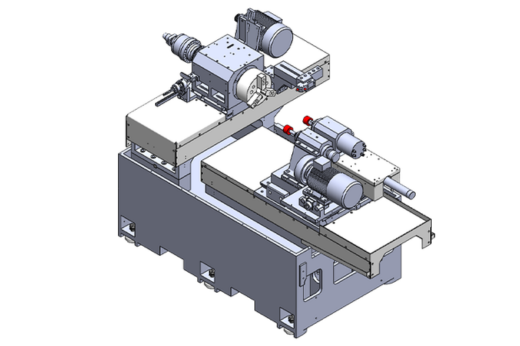

1. Tmachine model is a single-axis internal diameter and end face grinding machine.

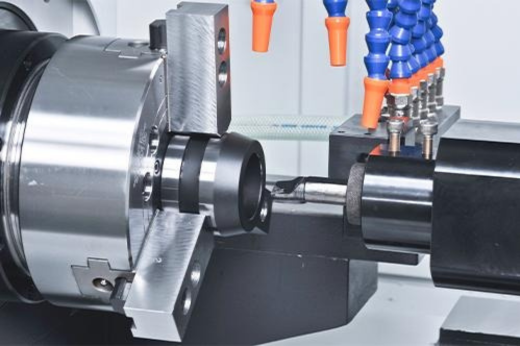

2. This model is capable of not only grinding internal diameters but also performing end face grinding.
3. It is full splash guard.

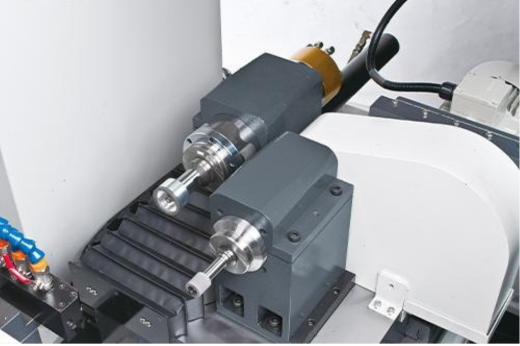

4. End face grinding spindle is driven by a hydraulic cylinder to position, while the extent of movement is controlled by a servo motor.
| SPECIFICATION | ||
| Type | KG-150B | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 200mm |
| Max, grinding depth | 150 mm | |
| Max, swing range of workpiece | Ø 300mm | |
| Swing range within the water proof cover | Ø 300 mm | |

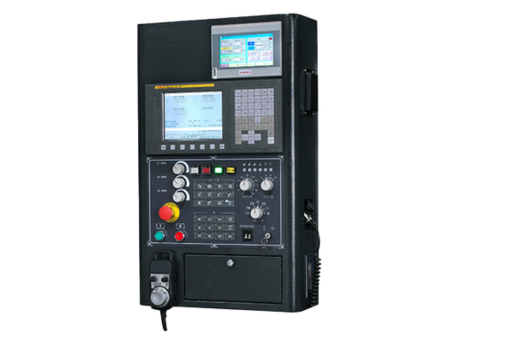

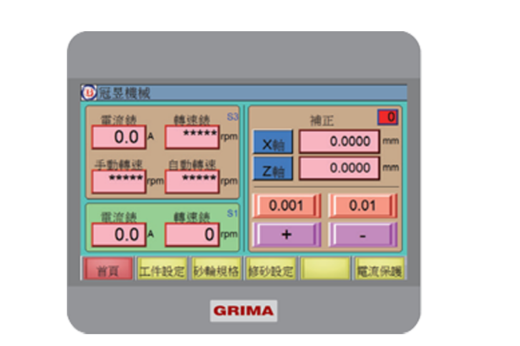

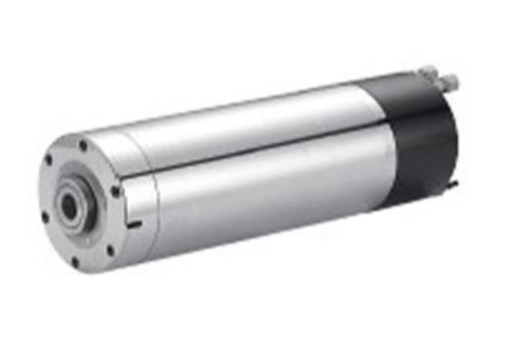

| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 350 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+15? | |
| Worktable | Z-axis feed rate | 10 M/min |
| Z-axis max. stroke | 400+100 mm | |
| Z-axis minimum display unit | 0.0001 mm | |
| Distance from spindle center to the ground | 1060 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 160 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | |
| X-axis & Z-axis servomotor | X : 1.2 Kw / Z : 1.2 Kw | |
| Grinding wheel motor (kw) | Z : 2.2 ? (3HP) | |
| Z2 : 3.0(Built-in) | ||
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 2 L |
| Machine dimension (LxWxH)-including accessories | 2500 x 2300 x1750 mm | |
| Machine Weight | 3200 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Z-axis grinding spindle | ||
| Z2-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
