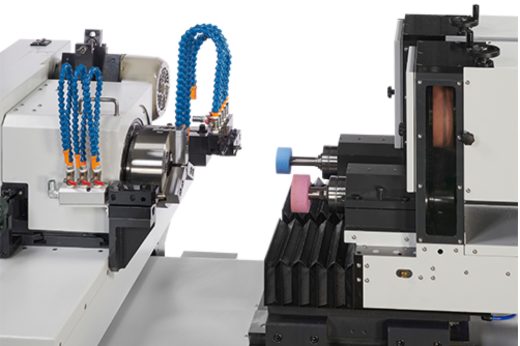

1. The KG-150D machine model is a dual-axis internal diameter grinding machine.
2. It has a compact footprint, saving space within the factory.
3. This model is suitable for processing medium and small-sized complex components.
4. It also features a graphical interface for easier operation, making it user-friendly.
| SPECIFICATION | ||
| Type | KG-150D | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 240 mm |
| Max, grinding depth | 150 mm | |
| Max, swing range of workpiece | Ø 300mm | |
| Swing range within the water proof cover | Ø 300 mm | |
| Controller System | Controller | FANUC |

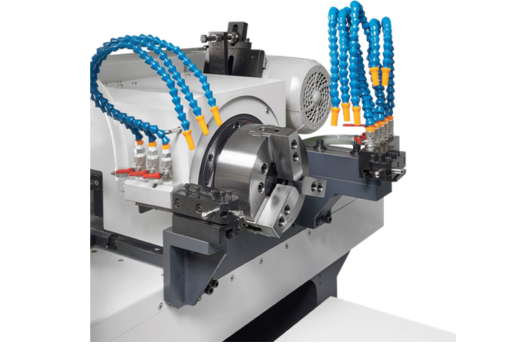

| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 350 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+15? | |
| Worktable | Z-axis feed rate | 10 M/min |
| Z-axis max. stroke | 400+100 mm | |
| Z-axis minimum display unit | 0.0001 mm | |
| Distance from spindle center to the ground | 1060 mm | |
| Hydraulic System | Oil Tank Capacity | 40 L |
| Cooling System | Coolant Tank Capacity | 160 L |
| Motor | Hydraulic motor | 1.5 Kw (2HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | |
| X-axis & Z-axis servomotor | X : 1.2 Kw / Z : 1.2 Kw | |
| Grinding wheel motor (kw) | Z : 2.2 ? (3HP) | |
| Z2 : 2.2 ? (3HP) | ||
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 2 L |
| Machine dimension (LxWxH)-including accessories | 2500 x 2400 x 1990 mm | |
| Machine Weight | 3200 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||

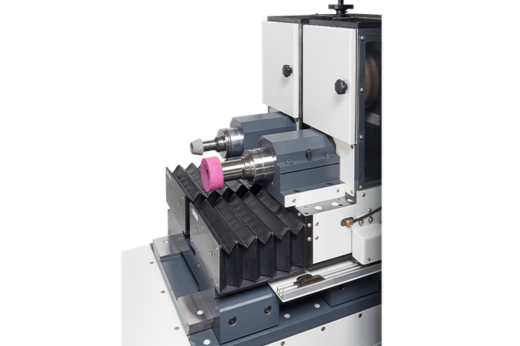

| Z-axis grinding spindle | ||
| Z2-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
