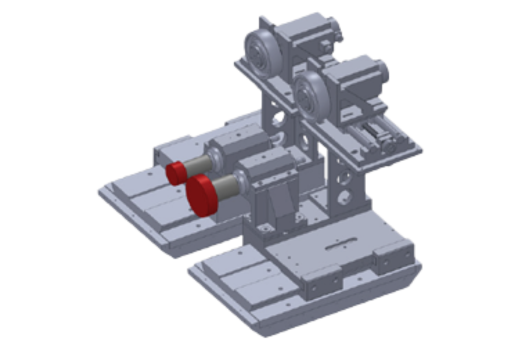

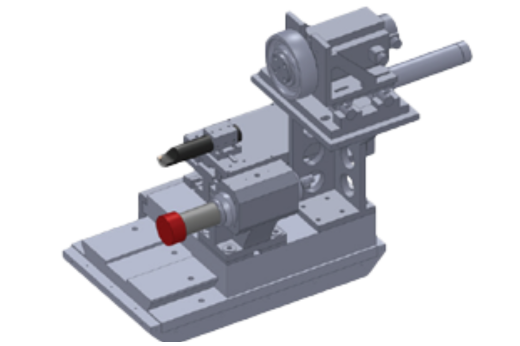

1. The machine model is Triple grinding spindle + turning spindle (opt)
2. Available to change into different speed spindle
3. The Max. grinding length is up to 200mm
4. X, Y, Z axis stroke 750/320+200/320+200mm
| SPECIFICATION | ||
| Type | KG-500L | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 320mm |
| Max, grinding depth | 200 mm | |
| Max, swing range of workpiece | Ø 500mm | |
| Swing range within the water proof cover | Ø 320 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 750 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+30? | |
| Worktable | Y-axis & Z-axis feed rate | Y : 10 / Z :10 M/min |
| Y-axis & Z-axis max. stroke | Y : 320+200 / Z : 320+200 | |
| Y-axis & Z-axis minimum display unit | Y : 0.0001 / Z : 0.0001 | |
| Distance from spindle center to the ground | 1100 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 200 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | 0.37 Kw (1/2HP) | |
| X-axis & Z-axis servomotor | X : 1.6 Kw / Y : 1.6 Kw / Z : 1.6 Kw | |
| Grinding wheel motor (kw) | Y : 2.2 ? (3HP) | |
| Z : 2.2 ? (3HP) | ||
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 4 L |
| Machine dimension (LxWxH)-including accessories | 3450 x 2350 x1950 mm | |
| Machine Weight | 5000 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Y-axis grinding spindle | ||
| Z-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
