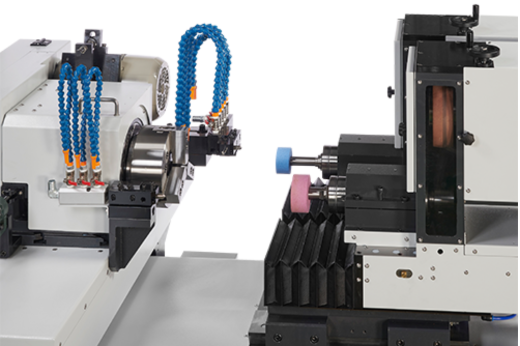

1. This model is equipped with OD grinding wheel 405mm and ID grinding spindle.
2. It guarantees to significantly increase grinding efficiency and accuracy of multiple faces workpieces.

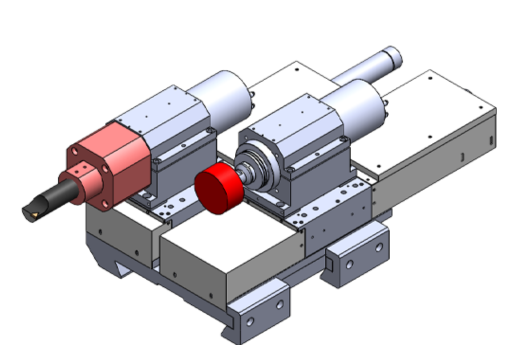

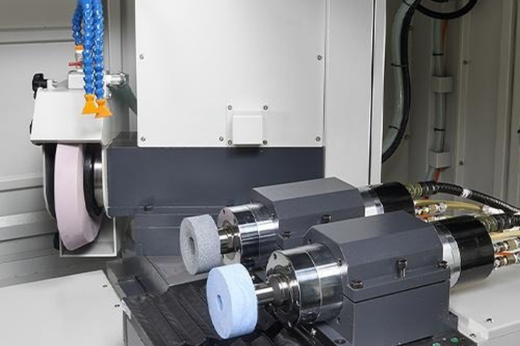

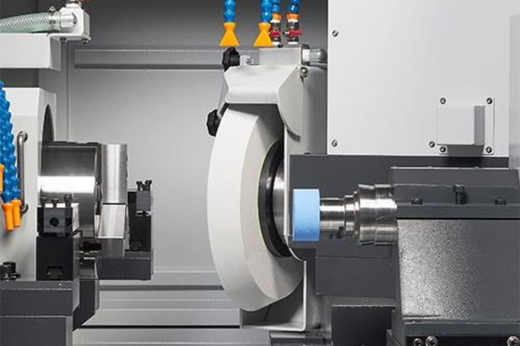

3. The large external grinding wheel is used for end face grinding, while the independent grinding wheel is used for rough and finish grinding of internal diameters.
4. This integrated setup allows for continuous processing, saving machining time, and ensuring greater precision and accuracy in workpiece processing.
| SPECIFICATION | ||
| Type | KG-500LE | |
| Working Capacity | Grinding dia, range | Ø 4 ~ Ø 320mm |
| Max, grinding depth | 200 mm | |
| Max, swing range of workpiece | Ø 480mm | |
| Swing range within the water proof cover | Ø 300 mm | |
| Controller System | Controller | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 750 mm | |
| X-axis minimum display unit | 0.0001 mm | |
| Swiveling angle | -5?~+30? | |
| Worktable | Y-axis & Z-axis feed rate | Y : 10 / Z :10 M/min |
| Y-axis & Z-axis max. stroke | Y : 320+150 / Z : 320+200 | |
| Y-axis & Z-axis minimum display unit | Y : 0.0001 / Z : 0.0001 | |
| Distance from spindle center to the ground | 1100 mm | |
| Hydraulic System | Oil Tank Capacity | 30 L |
| Cooling System | Coolant Tank Capacity | 250 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) |
| Coolant pump motor | Cylindrical Wheel : 0.18 Kw (1/4HP) | |
| Machine : 0.37 Kw (1/2HP) | ||
| X-axis & Z-axis servomotor | X : 1.6 Kw / Y : 1.6 Kw / Z : 1.6 Kw | |
| Grinding wheel motor (kw) | Y : 5.5 ? (7.5HP) | |
| Z : 3.7 ? (5HP) | ||
| Spindle motor | 2.2 ? (3HP) | |
| Others | Automatic lubricator | 4 L |
| Machine dimension (LxWxH)-including accessories | 3450 x 2350 x 2055 mm | |
| Machine Weight | 5300 kg | |
| Standard accessories | CNC Controller | |
| Inverter for X-axis workhead motor | ||
| Inverter for Z-axis grinding spindle motor | ||
| Inverter for Z2-axis grinding spindle motor | ||
| Y-axis grinding spindle | ||
| Z-axis grinding spindle | ||
| Hydraulic chuck | ||
| Hydraulic cylinder | ||
| Tricolor alarm lamp | ||
| Working lamp | ||
| Tool box | ||
| Automation lubrication | ||
| Coolant tank and pump | ||
| Paper filter | ||
| Magnetic separator | ||
| Hydraulic tank with pump | ||
| Internal heat radiation system inside cabinet | ||
| Diamond Dresser | ||
| Leveling bolts and pads | ||
| Mechanical, electrical operation manuals | ||
| Fully-enclosed cover | ||
