Industrial Profile Machining Center V20 Series

Enquiry Now Download Brochure

Feature

1.V series is a CNC profile compound machining center integrating drilling, tapping, milling and chamfering.

2.Use FANUC CNC system.

3.Suitable for processing light aluminum frame, copper frame and non-metal frame.

4.Using castings, high processing efficiency and high processing precision.

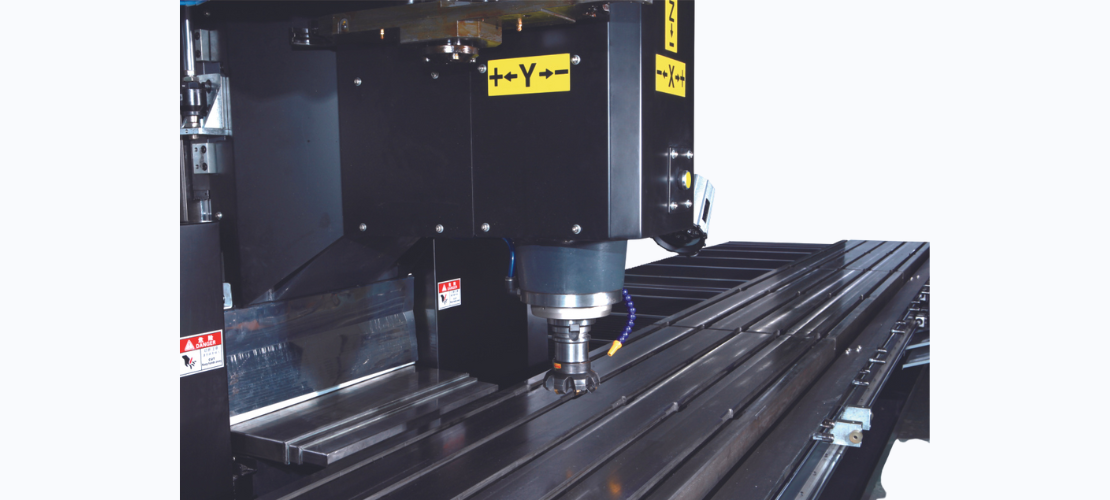

5.Adopt BT40 spindle, high rigidity, large chip volume and higher efficiency.

6.Widely used in the processing of profiles such as ecological doors, world hinges, swing doors, and minimalist glass doors.

TRAVEL
Model	V20
X-Axis Stroke	2050mm
Y-Axis Stroke	650mm
Z-Axis Stroke	650mm
SPINDLE
Spindle Speed	12000(r.p.m)
Spindle Taper	BT40(Φ150)
TOOLS

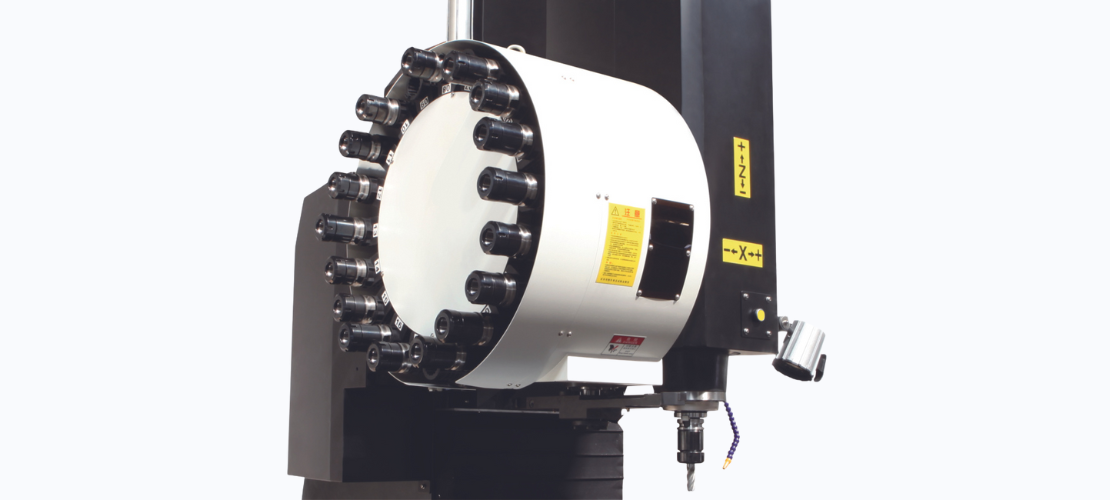

Tool changer format	Disc type
Pull studs format	45°
Tool capacity	24 pcs
Tool change time	3ses
MOVING SPEED
X-Axis Moving Speed	36m/min
Y-Axis Moving Speed	36m/min
Z-Axis Moving Speed	36m/min
Feeding Speed	20000mm/min
POWER OF MOTOR
Spindle Driven Motor	11/18.5kw
X / Y / Z Driven Motor	3.0/3.0/3.0 kw
LUBRICATING SYSTEM
Cooling system	Water cooling system
Lubricating system	Automative lubricating
PRECISION
Position Precisionof X Axis	0.01mm
Position Precision of Y / Z Axis	0.01mm
Repeating Precision (X / Y / Z)	0.005mm
SIZE OF MACHINE
Air Pressure	0.6Mpa-0.9Mpa
Operation System	FANUC
Height	2500 mm
Area	4800*3100 mm
Weight	7000kg
