C-FRAME HYDRAULIC STAMPING PRESS FOR METAL DEFORMATION – PCL Made In Italy

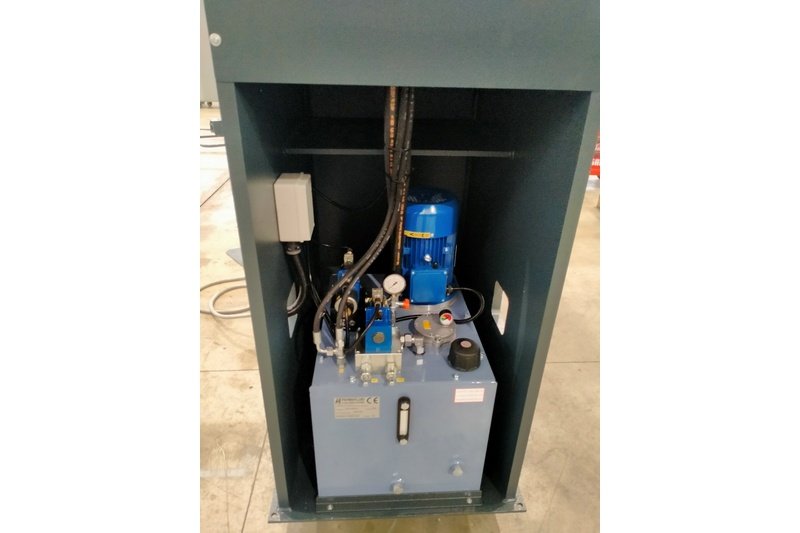

Maximum pressure valve

As a safety measure to guarantee the operator's safety and to safeguard the machine, a maximum pressure valve is installed inside the hydraulic control unit on all hydraulic presses produced by SICMI.

Anchoring electrical cables

The tubes for the passage of the electrical cables are anchored to the press frame by means of special collars.

Unlike many competitors who use simple plastic ties that are destined to dry out and break quickly, these collars are made of highly resistant material and are screwed to the structure of the press.

Anchoring hydraulic pipes

As a safety measure, the hydraulic hoses of all the presses produced by SICMI are firmly fixed to the machine frame using special collars which prevent any movement of the hydraulic hose.

These collars have the base welded to the frame, while the upper part is screwed.

Stopflex anchor

All SICMI hydraulic presses are equipped with the Stopflex hose retention system, designed to secure pressurized hydraulic hoses and prevent uncontrolled movement in the event of fitting failure.

The system helps reduce the risk of the whip effect, protects personnel and equipment, and limits hydraulic oil release into the working area.

Anti-fall and anti-explosion valves

All SICMI hydraulic presses are equipped with anti-fall and anti-burst safety valves to protect the operator and machine.

• Anti-Fall Valve – Keeps the hydraulic cylinder securely in position if a hydraulic hose fails, preventing the upper platform from falling.
• Anti-Burst Valve – Releases excess hydraulic pressure if it exceeds the permitted limit, helping protect the cylinder from damage.

Current transformer

24V Low-Voltage Control System

The press operates with a 400V three-phase power supply. For operator safety, a transformer inside the electrical panel reduces the control voltage to 24V, minimizing the risk of electric shock.

• 400V Three-Phase Power Supply
• 24V Low-Voltage Control
• Built-In Safety Transformer
• Reduced Electrical Shock Risk

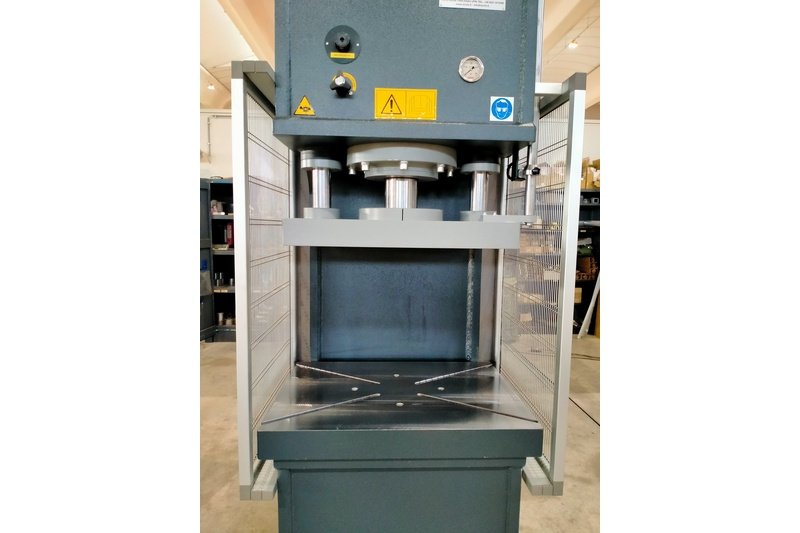

Milled platform with T-slots

The milled platform with T-slots allows quick fixing of the molds.

The dimensions, as well as the depth and geometry of the grooves, are completely customizable upon customer request.

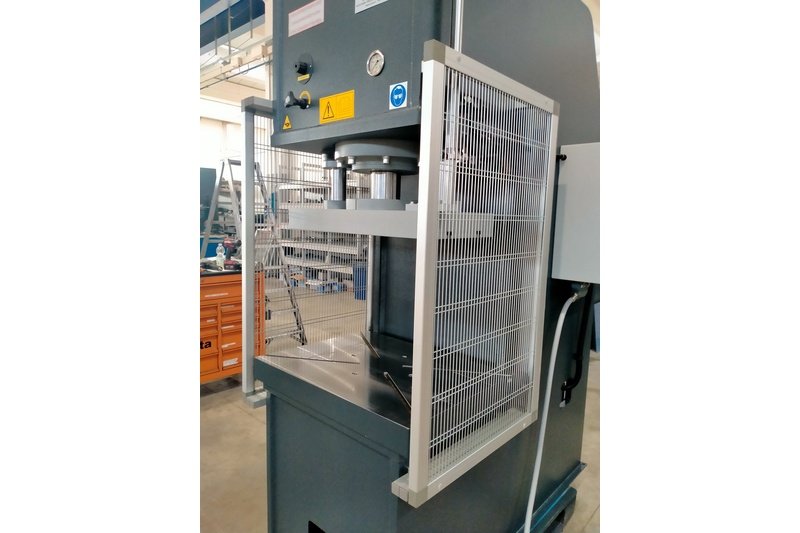

Fixed protection nets

Fixed protective nets are essential components in hydraulic presses, ensuring the safety of operators.

These sturdy nets are made of aluminum and surround the working area of the hydraulic press.

Their main function is to prevent unauthorized or inadvertent access to the pressing area, minimizing the risk of serious injury.

Pair of sliding guides

Self-Lubricating Sliding Guides

Side-mounted guides ensure smooth, accurate worktable movement for precise forming operations.

• 2 guides: Standard up to 200 tons
• 4 guides: Available on request

Cylinder limit switches

The press allows precise stroke adjustment through microswitches that control the cylinder's maximum descent and ascent positions.

• Semi-Automatic: Microswitches stop piston movement at the set position.
• Automatic: The piston automatically returns to Top Dead Center (TDC).
• Digital Touchscreen: An encoder replaces the microswitches and continuously measures piston position with 0.1 mm accuracy.
