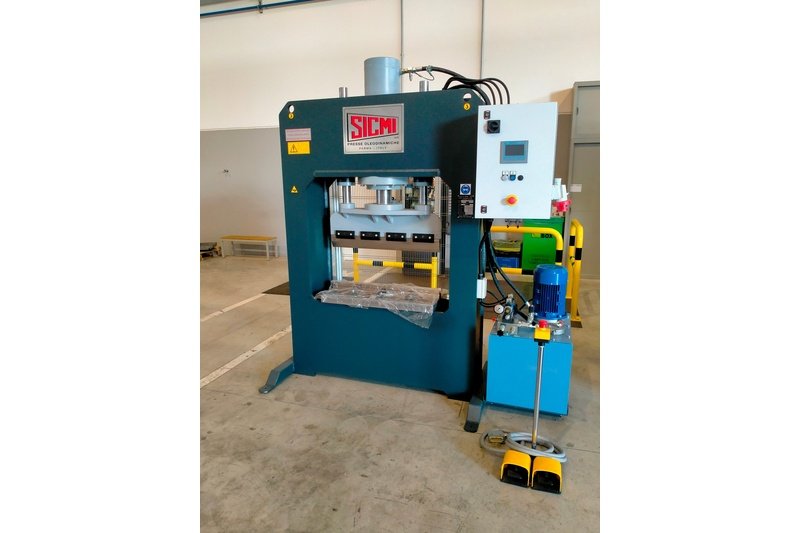

The PDL hydraulic bending press features a rigid monolithic frame designed for precise and reliable sheet metal bending. Its upper mobile support holds the punch, while the lower fixed table accommodates the bending die.

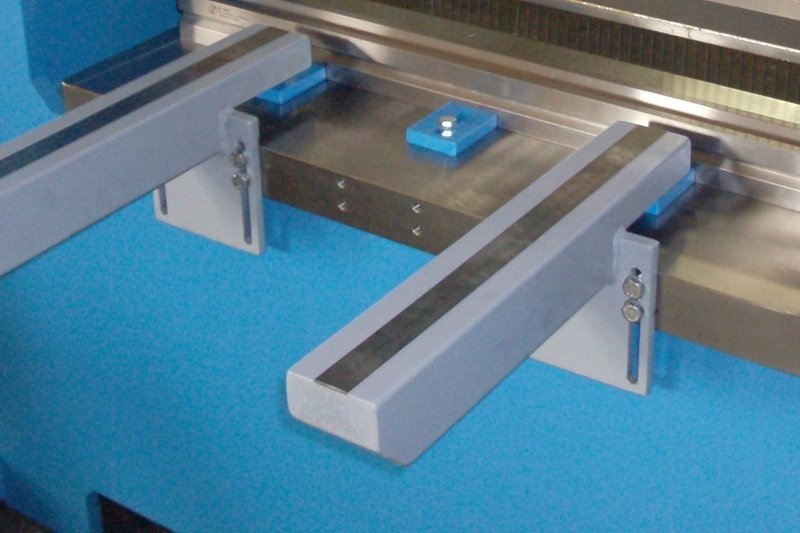

The electro-welded steel structure provides a stable working platform, while front supports with millimeter rods help position the sheet accurately.
The cylinder approach speed is under 10 mm/sec, allowing the operator to keep both hands free to position and adjust the sheet during bending operations.
The operator controls the press using a lever, leaving the other hand free to handle the sheet metal. Cylinder stroke sensors regulate the movement.
Standard Version Options
The press is operated using double pedals, with automatic cylinder return and adjustable stroke.
Safety features include:
Automatic Version Options

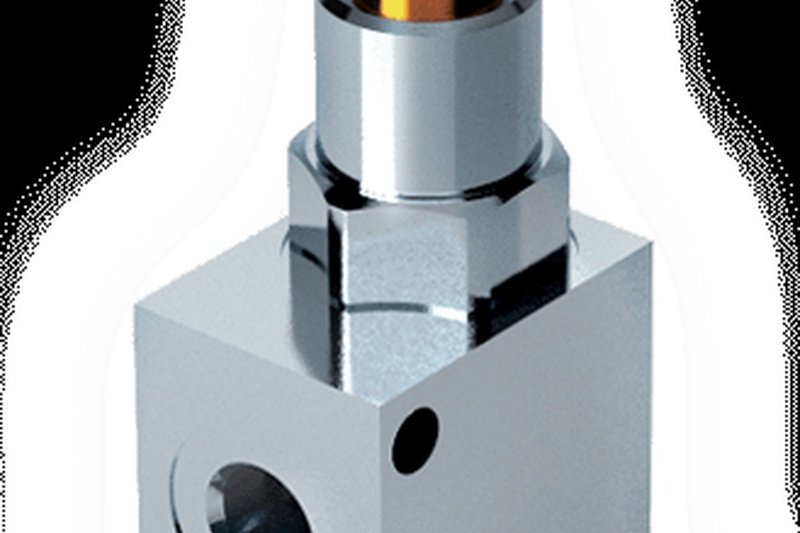

As a safety measure to guarantee the operator's safety and to safeguard the machine, a maximum pressure valve is installed inside the hydraulic control unit on all hydraulic presses produced by SICMI.

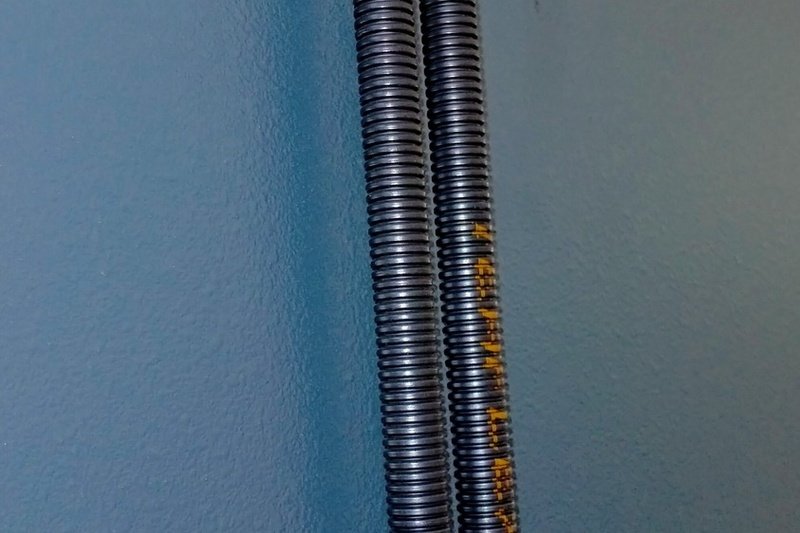

The tubes for the passage of the electrical cables are anchored to the press frame by means of special collars.
Unlike many competitors who use simple plastic ties that are destined to dry out and break quickly, these collars are made of highly resistant material and are screwed to the structure of the press.

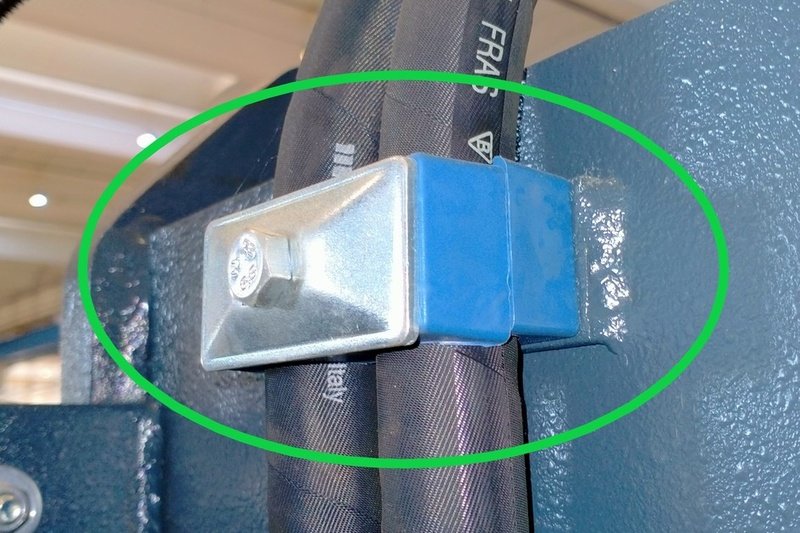

As a safety measure, the hydraulic hoses of all the presses produced by SICMI are firmly fixed to the machine frame using special collars which prevent any movement of the hydraulic hose.
These collars have the base welded to the frame, while the upper part is screwed.

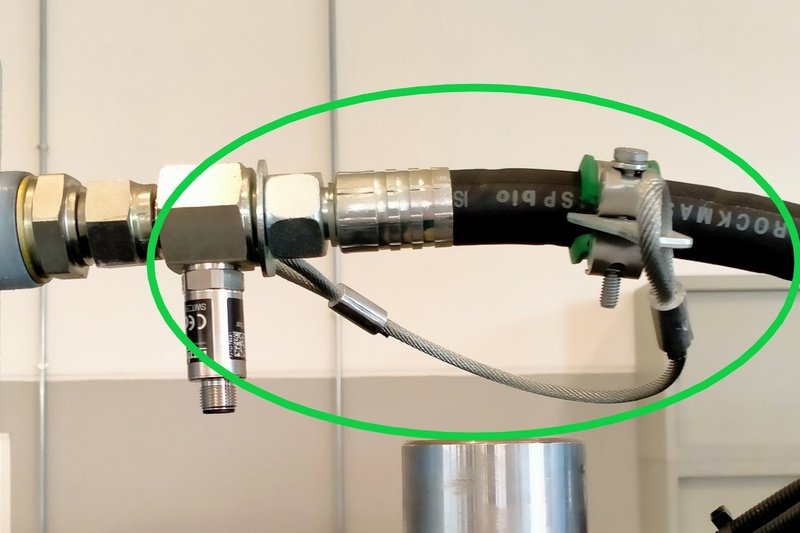

All SICMI hydraulic presses are equipped with the Stopflex hose retention system, designed to secure pressurized hydraulic hoses and prevent uncontrolled movement in the event of fitting failure.
The system helps reduce the risk of the whip effect, protects personnel and equipment, and limits hydraulic oil release into the working area.
24V Low-Voltage Control System

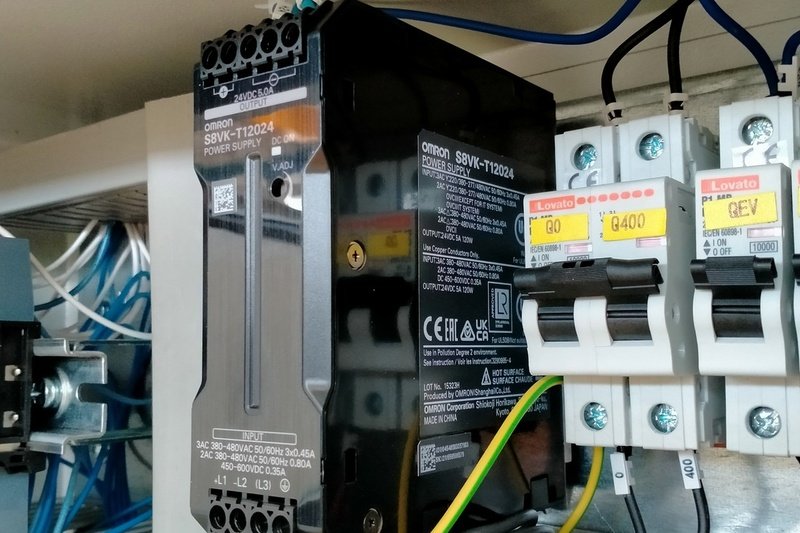

The press operates with a 400V three-phase power supply. For operator safety, a transformer inside the electrical panel reduces the control voltage to 24V, minimizing the risk of electric shock.
All SICMI hydraulic presses are equipped with the Stopflex hose retention system, designed to secure pressurized hydraulic hoses and prevent uncontrolled movement in the event of fitting failure.
The system helps reduce the risk of the whip effect, protects personnel and equipment, and limits hydraulic oil release into the working area.

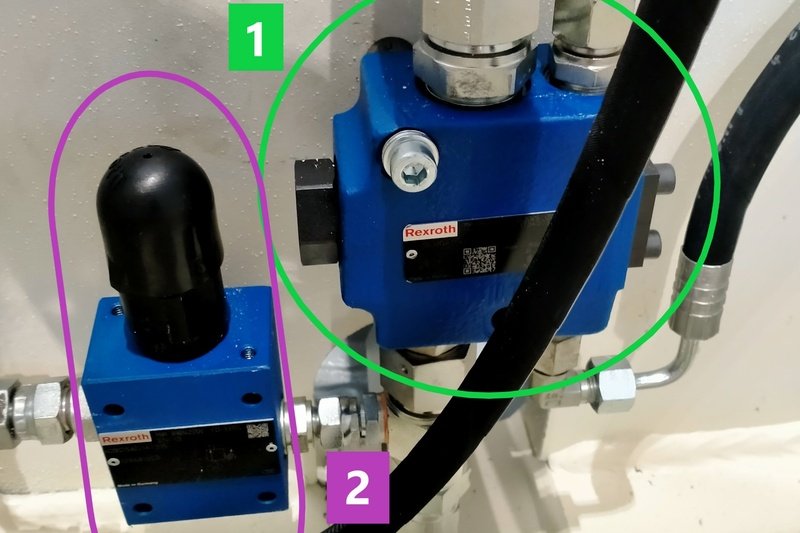

All SICMI hydraulic presses are equipped with anti-fall and anti-burst safety valves to protect the operator and machine.

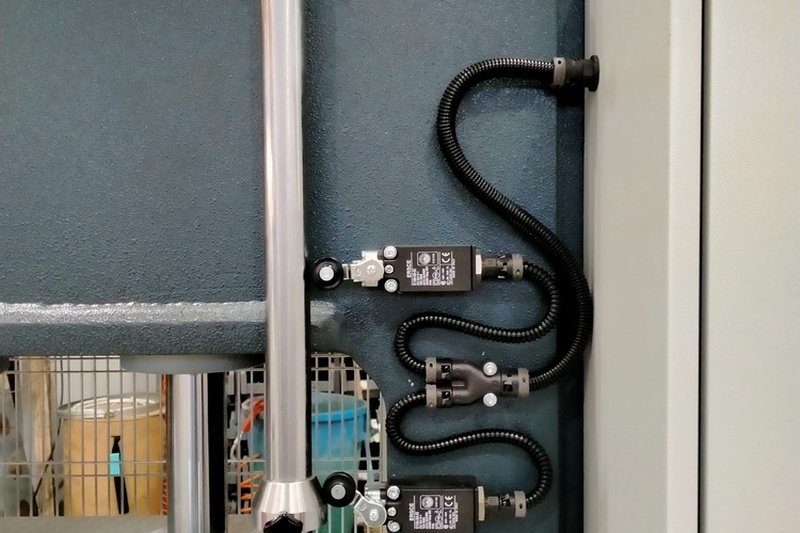

The press allows precise stroke adjustment through microswitches that control the cylinder's maximum ascent and descent positions.
| Specification | PDL 40 | PDL 70 | PDL 100 | PDL 100B | PDL 100C | PDL 150 | PDL 150C | PDL 200 | PDL 200C | PDL 300D | PDL 400D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tonnage | 40 | 70 | 100 | 100 | 100 | 150 | 150 | 200 | 200 | 300 | 400 |
| A | 2200 | 2300 | 2300 | 2300 | 2400 | 2600 | 2600 | 2750 | 2750 | 3000 | 3000 |
| B | 1850 | 1850 | 2100 | 2650 | 2650 | 2700 | 2700 | 2750 | 2750 | 3300 | 3400 |
| C | 1050 | 1050 | 1050 | 1300 | 1300 | 1400 | 1400 | 1500 | 1600 | 1800 | 1800 |
| D | 900 | 900 | 1050 | 1050 | 1550 | 1550 | 1550 | 1550 | 1550 | 2000 | 2000 |
| E (Punch) | 835 | 835 | 850 | 1000 | 1500 | 1000 | 1500 | 1000 | 1500 | 1500 | 1500 |
| Stroke (F) | 350 | 350 | 375 | 375 | 375 | 450 | 450 | 500 | 500 | 500 | 500 |
| Cylinder Stroke | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Approach Speed | 9 | 10 | 10 | 10 | 10 | 9 | 9 | 10 | 10 | 9 | 9 |
| Working Speed | 9 | 5 | 4 | 4 | 4 | 3 | 3 | 3 | 3 | 2 | 2 |
| Power (kW) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 7.5 | 7.5 | 7.5 | 7.5 |
| Weight (kg) | 1200 | 1300 | 1900 | 2600 | 2700 | 4300 | 4500 | 5900 | 6300 | 10300 | 12000 |
