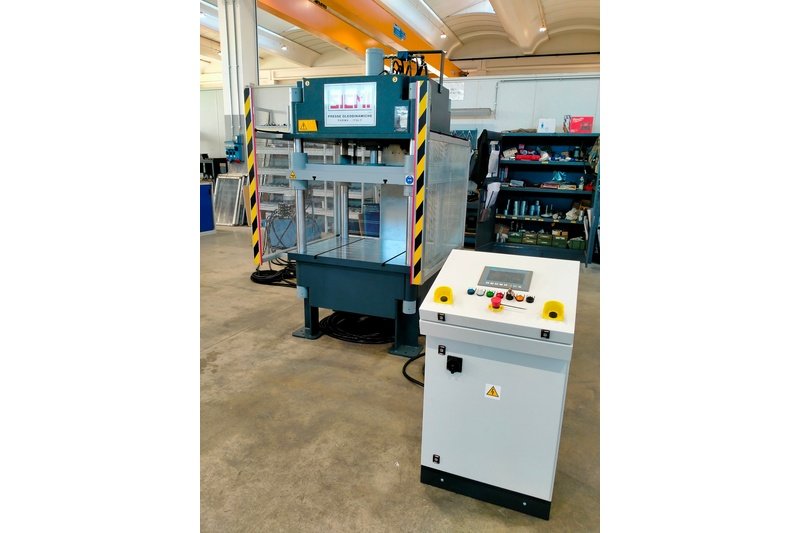

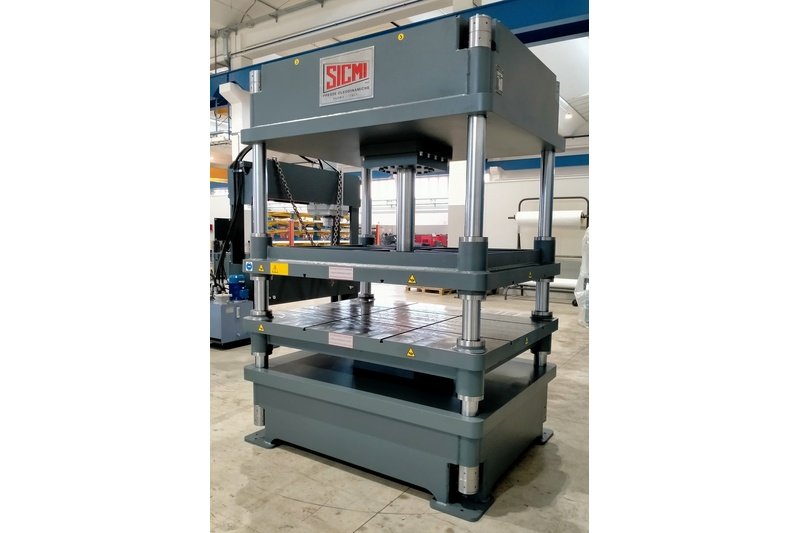

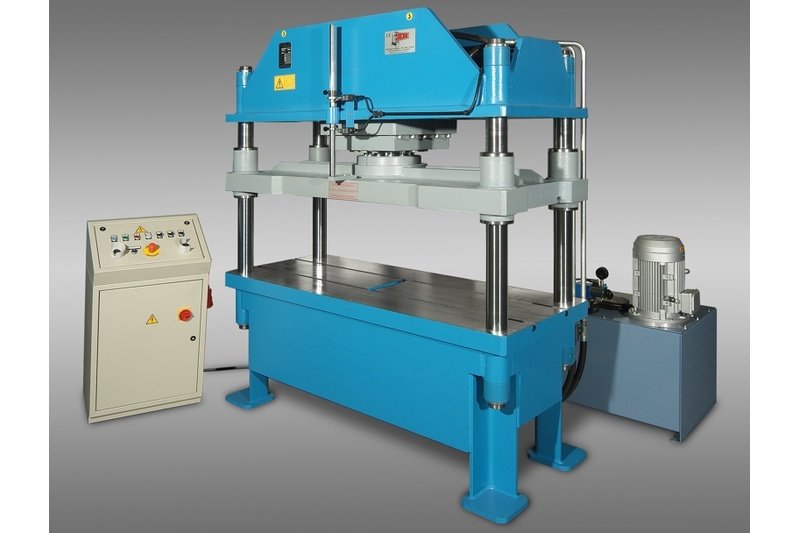

The PSQ hydraulic press is designed for drawing and forming sheet metal. Its four-column structure provides excellent parallelism during forming operations, ensuring stable and controlled movement of the upper platen.
The upper mobile platen runs along 4 columns, while both the upper and lower platens feature T-slots for mold fixing.
The PSQ is available exclusively in an automatic version, operated through simultaneous dual-button control. The system includes:
.jpg)
As a safety measure to guarantee the operator's safety and to safeguard the machine, a maximum pressure valve is installed inside the hydraulic control unit on all hydraulic presses produced by SICMI.
The tubes for the passage of the electrical cables are anchored to the press frame by means of special collars.
Unlike many competitors who use simple plastic ties that are destined to dry out and break quickly, these collars are made of highly resistant material and are screwed to the structure of the press.
_800x533.jpg)
.jpg)
As a safety measure, the hydraulic hoses of all the presses produced by SICMI are firmly fixed to the machine frame using special collars which prevent any movement of the hydraulic hose.
These collars have the base welded to the frame, while the upper part is screwed.
All SICMI hydraulic presses are equipped with the Stopflex hose retention system, designed to secure pressurized hydraulic hoses and prevent uncontrolled movement in the event of fitting failure.
The system helps reduce the risk of the whip effect, protects personnel and equipment, and limits hydraulic oil release into the working area.
_800x533.jpg)
.jpg)
All SICMI hydraulic presses are equipped with anti-fall and anti-burst safety valves to protect the operator and machine.
24V Low-Voltage Control System
The press operates with a 400V three-phase power supply. For operator safety, a transformer inside the electrical panel reduces the control voltage to 24V, minimizing the risk of electric shock.
.jpg)

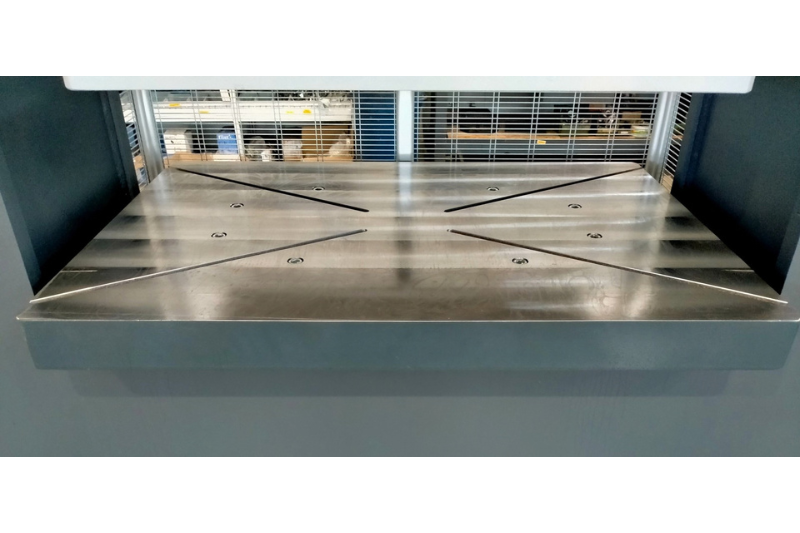

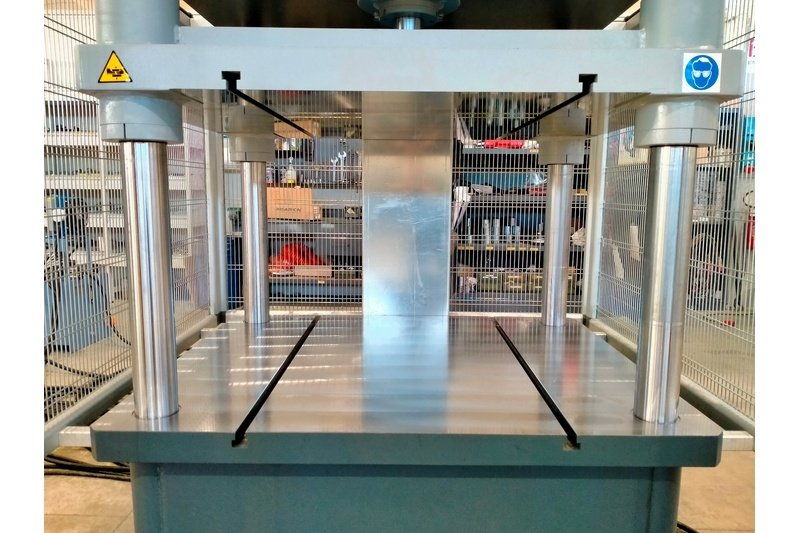

The milled platform with T-slots allows quick fixing of the molds.
The dimensions, as well as the depth and geometry of the grooves, are completely customizable upon customer request.

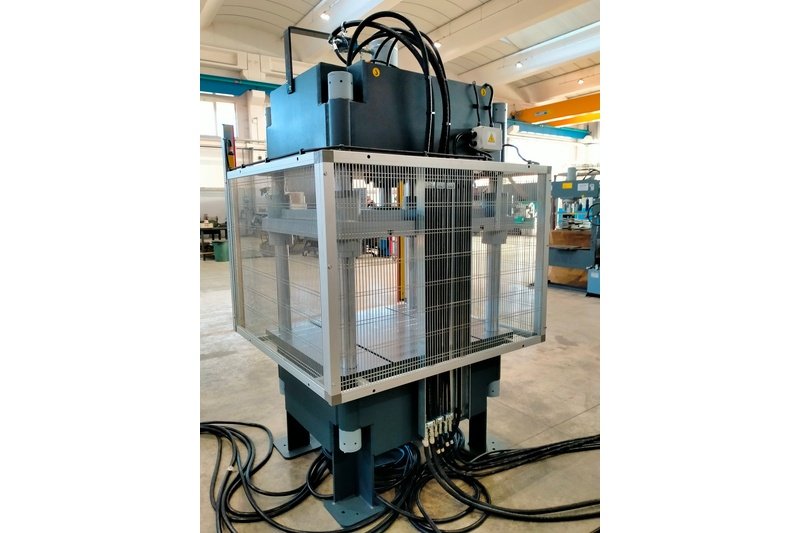

Fixed protective nets are essential components in hydraulic presses, ensuring the safety of operators.
These sturdy nets are made of aluminum and surround the working area of the hydraulic press.
Their main function is to prevent unauthorized or inadvertent access to the pressing area, minimizing the risk of serious injury.
.jpg)

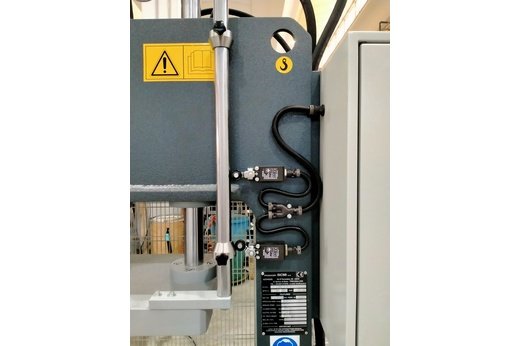

The press allows precise stroke adjustment through microswitches that control the cylinder's maximum descent and ascent positions.
