ECCENTRIC MECHANICAL PRESSES MADE IN FRANCE

EMG eccentric mechanical presses are designed for reliable operation, enhanced operator safety, and high production repeatability.

Product Introduction

Eccentric Mechanical Presses

Robust. Reliable. Built for High-Production Performance.

EMG eccentric mechanical presses are designed for reliable operation, operator safety, and high production repeatability. Built to meet CE requirements, they provide efficient and consistent performance for demanding production environments.

High Productivity & Repeatability

Quick stroke changes and ball screw adjustments enable fast setup and precise control, supporting efficient processing of large production runs.

Robust and reliable mechanical construction
CE-compliant design with 3 CE type-approval certificates
High operator safety
Quick stroke changes
Ball screw adjustment
High operational repeatability
Suitable for large production runs

6T

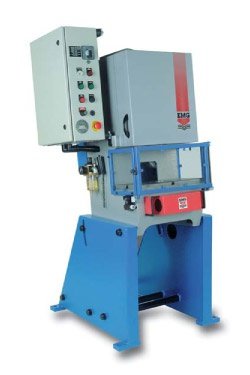

6T Eccentric Mechanical Press
Variable course 4 ↔ 40 mm
Gooseneck depth 120 mm
Table dimensions 450x220x30 mm
Number of cycles 240
Free height 200 mm
Ball joint screw 0 ↔ 30 mm
Weight 450 kg

15T

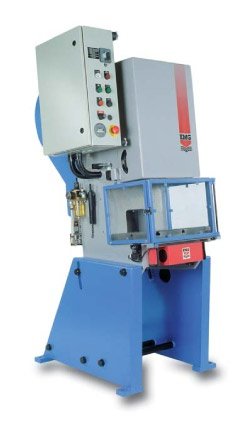

15T Eccentric Mechanical Press
Variable course 5 ↔ 75 mm
Gooseneck depth 180 mm
Table dimensions 450x220x40 mm
Number of cycles 140
Free height 300 mm
Ball joint screw 0 ↔ 50 mm
Weight 900 kg

25T

25T Eccentric Mechanical Press
Variable course 5 ↔ 75 mm
Gooseneck depth 210 mm
Table dimensions 550x400x48 mm
Number of cycles 140
Free height 300 mm
Ball joint screw 0 ↔ 60 mm
Weight 1400 kg

45T

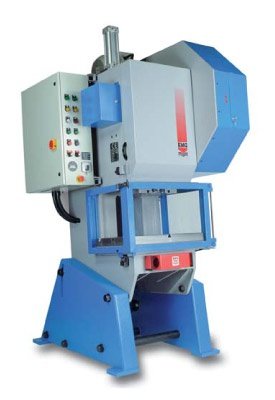

45T Eccentric Mechanical Press
Variable course 6 ↔ 100 mm
Gooseneck depth 220 mm
Table dimensions 650x430x57 mm
Number of cycles 120
Free height 350 mm
Ball joint screw 0 ↔ 70 mm
Weight 3100 kg

80T

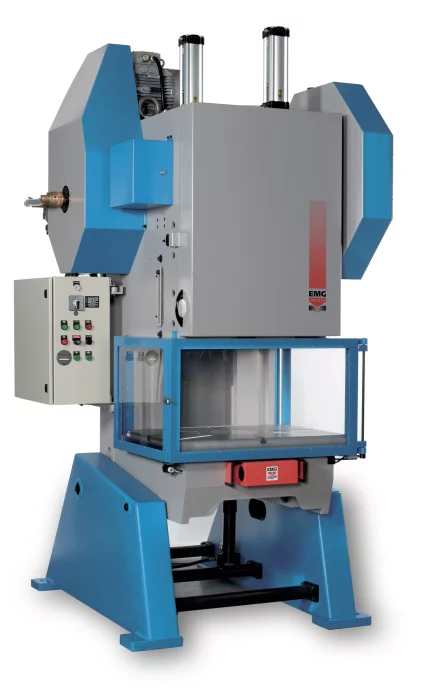

80T Eccentric Mechanical Press
Variable course 8 ↔ 120 mm
Gooseneck depth 300 mm
Table dimensions 850x600x67 mm
Number of cycles 100
Free height 400 mm
Ball joint screw 0 ↔ 90 mm
Weight 6300 kg
