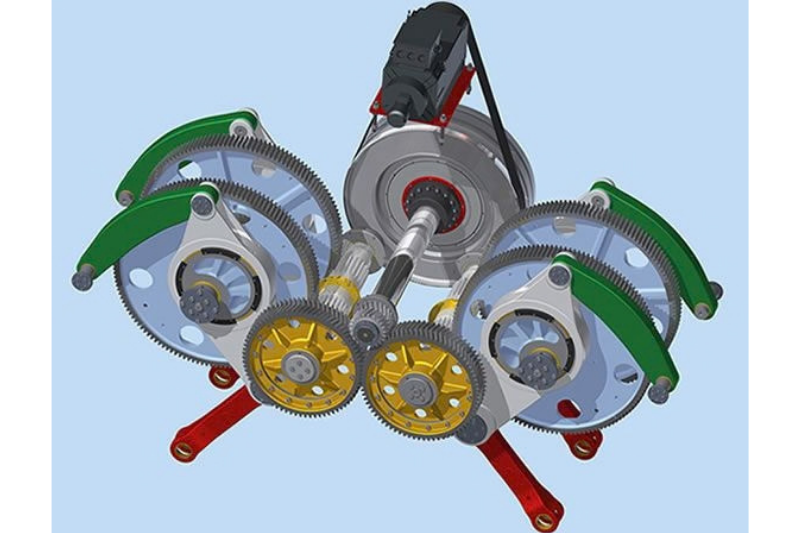

The Link Drive System is a specialized mechanism integrated with the traditional rod-crank system to transmit motion to the slide. Built with robust cast-steel levers, special bronze bearings, and hardened 39CrMo3 pins, the system is designed to provide controlled and optimized slide movement.
The Link Drive System allows the movement profile of the slide to be optimized during the press design phase, including the approach, working, and return speeds. The system provides lower slide speed during the working area, supporting more controlled forming operations.
With optimized slide motion, controlled working speed, and reduced tool wear, Link Drive technology provides a practical solution for applications requiring greater control, efficiency, and forming quality.
Allows the approaching, working, and return speeds to be configured for the application.
Provides controlled movement during the forming stage.
Helps reduce tool consumption and extend tool service life.
Enables more effective use of blank-holder cushions where required.
Controlled slide movement helps improve forming quality.
Designed to reduce noise during press operation.

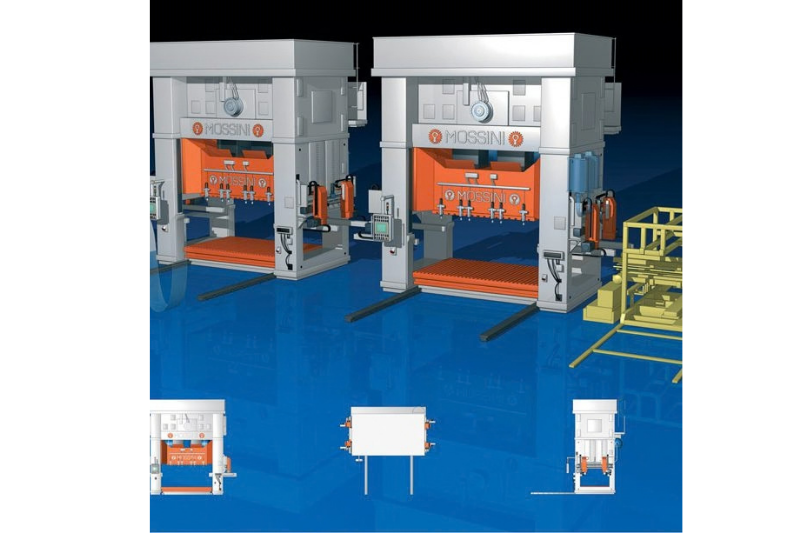

The Eccentric Presses with Automatic Stroke Change range is available in configurations with one, two, or four connecting rods, with pressing forces ranging from 100 to 3,500 tons.
| Configuration | Capacity |
|---|---|
| 1 Connecting Rod | 100–1,000 Tons* |
| 2 Connecting Rods | 100–3,000 Tons* |
| 4 Connecting Rods | 100–3,500 Tons* |
