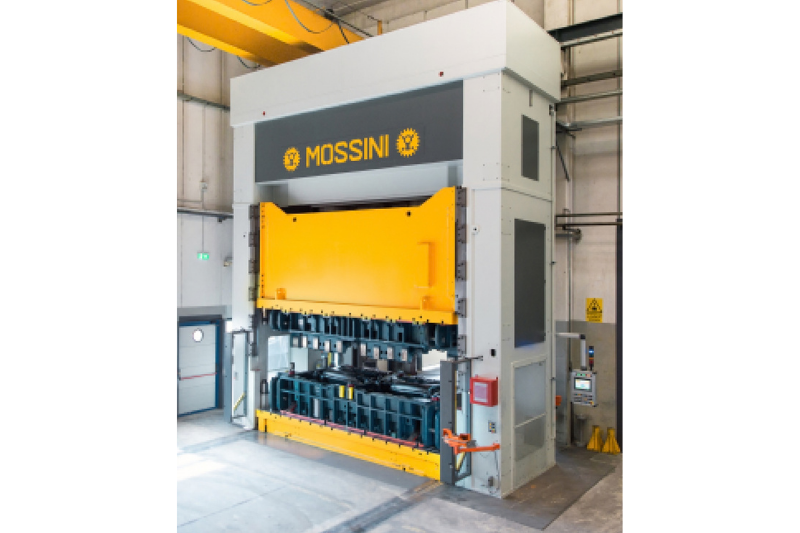

Designed for efficient die spotting and forming operations, Hydraulic Die Spotting Presses feature particularly large working tables that are clearly visible and accessible from all directions. The well-lit working area provides excellent visibility during setup, adjustment, and inspection.
The presses are equipped with a range of systems designed to simplify die setup and ensure accurate operation, including:
Facilitates efficient die and workpiece handling.
Allows flexible positioning according to tooling requirements.
Devices designed to maintain parallelism between the slide table and working table.
A compensation system helps accommodate the effects of gas springs during operation.
Processing parameters can be modified directly during the forming phase, providing greater flexibility and control when adjusting the forming process.
| Specification | Configuration |
|---|---|
| Press Type | Double-Sided Hydraulic Die Spotting Press |
| Force Range | 160–3,500 Tons |
| Working Table | Large & Accessible |
| Bolster | Moving Bolster |
| Alignment | Slide-to-Table Parallelism Control |
| Parameter Control | Adjustable During Forming |
| Accessories | Full Range Compatible |
