HYDRAULIC PORTAL STRAIGHTENING PRESS – PMM Made In Italy

The PMM hydraulic portal straightening press is designed for straightening sheet metal and various fabrication applications. 150–600 Tons

Request Inquiry
DanaTech Expert Installation Support
Gallery Image 1

Product Introduction

Hydraulic Portal Press for Sheet Metal Straightening

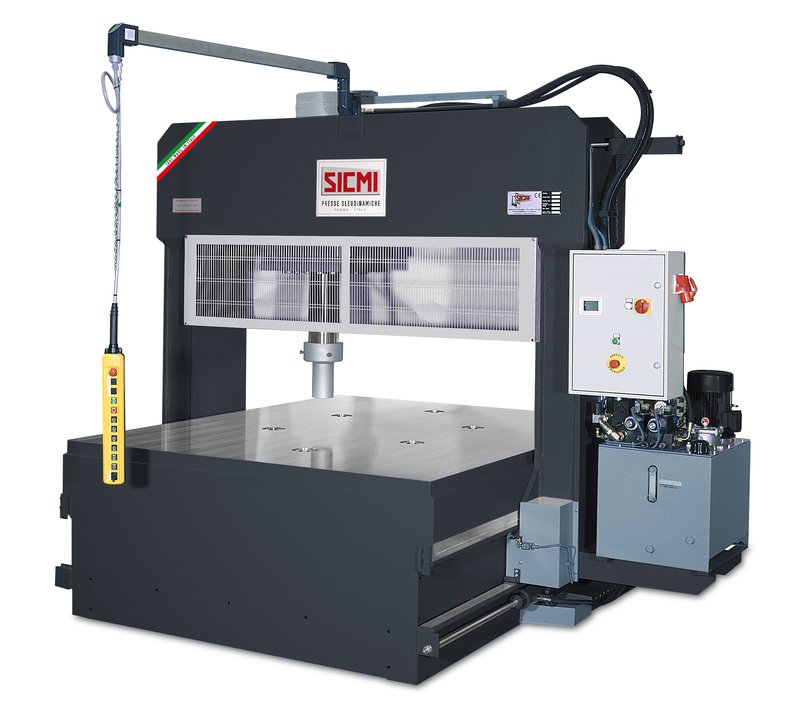

The PMM hydraulic portal straightening press is designed for straightening sheet metal and various fabrication applications. Its motorized gantry and movable cylinder provide access to any point of the workpiece without repositioning it.

Motorized Gantry & Cylinder

The longitudinal movement of the gantry combined with the transversal movement of the cylinder enables precise positioning across the entire workbench.

• Capacity: 150–600 tons
• Cylinder Stroke: 500 mm
• Motorized gantry movement
• Transversal cylinder movement
• Three-lever control system
• Simultaneous control button for operator safety
• Standard metal safety protection grids

Flexible Control & Operation

Gantry and cylinder movements are controlled through three levers operated simultaneously with the control button, complying with current EC safety requirements.

Accessories

Protective sheet

Protective guard plates are fitted on both sides of the moving gantry to protect the gauge between the upright and press table.

They prevent metal debris from entering the guides, seals, and lubrication system, reducing the risk of blockages and unexpected downtime.

The angled metal guards feature a durable polymer edge that protects both the processed material and the operator.

Protective sheet
Maximum pressure valve

Maximum pressure valve

As a safety measure to guarantee the operator's safety and to safeguard the machine, a maximum pressure valve is installed inside the hydraulic control unit on all hydraulic presses produced by SICMI.

Anchoring electrical cables

The tubes for the passage of the electrical cables are anchored to the press frame by means of special collars.

Unlike many competitors who use simple plastic ties that are destined to dry out and break quickly, these collars are made of highly resistant material and are screwed to the structure of the press.

Anchoring electrical cables
Anchoring hydraulic pipes

Anchoring hydraulic pipes

As a safety measure, the hydraulic hoses of all the presses produced by SICMI are firmly fixed to the machine frame using special collars which prevent any movement of the hydraulic hose.

These collars have the base welded to the frame, while the upper part is screwed.

Stopflex anchor

All SICMI hydraulic presses are equipped with the Stopflex hose retention system, designed to secure pressurized hydraulic hoses and prevent uncontrolled movement in the event of fitting failure.

The system helps reduce the risk of the whip effect, protects personnel and equipment, and limits hydraulic oil release into the working area.

Stopflex anchor
Current transformer

Current transformer

24V Low-Voltage Control System

The press operates with a 400V three-phase power supply. For operator safety, a transformer inside the electrical panel reduces the control voltage to 24V, minimizing the risk of electric shock.

  • 400V Three-Phase Power Supply
  • 24V Low-Voltage Control
  • Built-In Safety Transformer
  • Reduced Electrical Shock Risk

Product Specifications

Specification PMM 150MC PMM 150MD PMM 200MC PMM 200MD PMM 200ME PMM 300MD PMM 300ME PMM 300MT PMM 400ME PMM 400MT PMM 500ME PMM 600ME
Tonnage 150 150 200 200 200 300 300 300 400 400 500 600
A 2500 2500 2600 2600 2600 2600 2600 2600 2600 2600 3000 3000
B 2350 2900 2400 2950 3550 3100 3550 4000 4000 4500 5000 5000
C 2000 2500 2000 2500 3000 3000 4000 5000 4000 5000 5000 6000
D 1550 2050 1550 2050 2550 2050 2550 3050 2550 3050 2550 2550
E 750 750 750 750 750 700 700 700 700 700 700 700
F 800 800 800 800 800 700 700 700 700 700 700 700
G* 60 60 80 80 80 80 80 80 90 90 90 90
X 1000 1400 1000 1450 1900 1300 1800 2200 1800 2200 1700 2200
O 1300 1600 1300 1600 2000 2000 2800 3600 2900 3600 3600 4600
Cylinder Stroke 500 500 500 500 500 500 500 500 500 500 500 500
Approach Speed 20 20 20 20 20 20 20 20 20 20 18 18
Working Speed 3 3 2 2 2 2 2 2 2 2 3 3
Power (kW) 4 4 4 4 4 7.5 7.5 7.5 7.5 7.5 15 22
Weight (kg) 4300 5200 5000 6000 8400 10100 13400 19200 17000 21000 32000 35000
Weight with Plate (kg) 5850 7750 6600 9000 12800 13600 19150 28800 22700 30100 42000 46000
