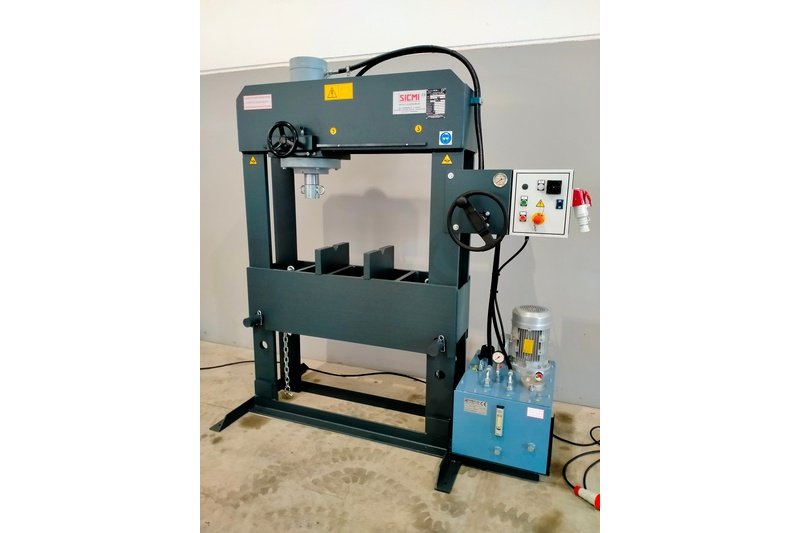

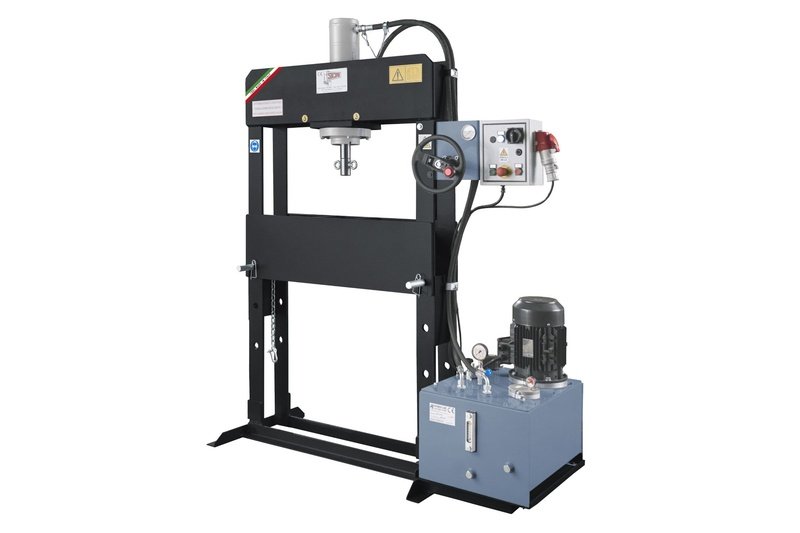

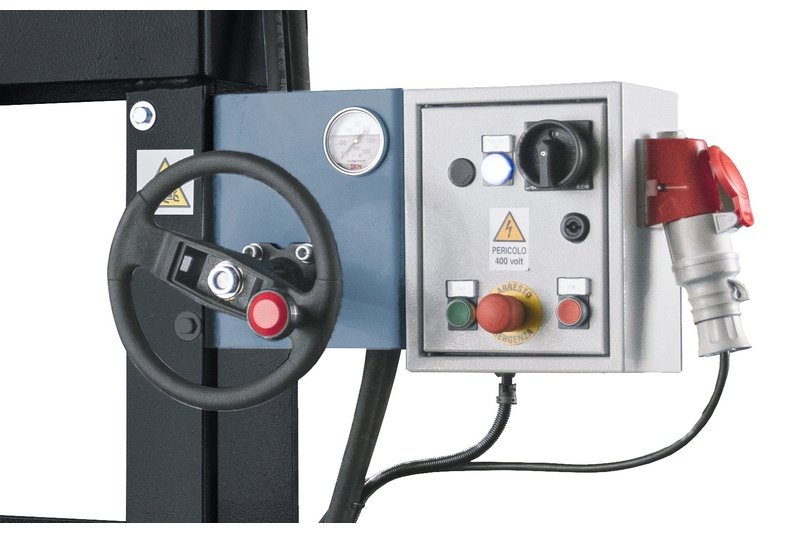

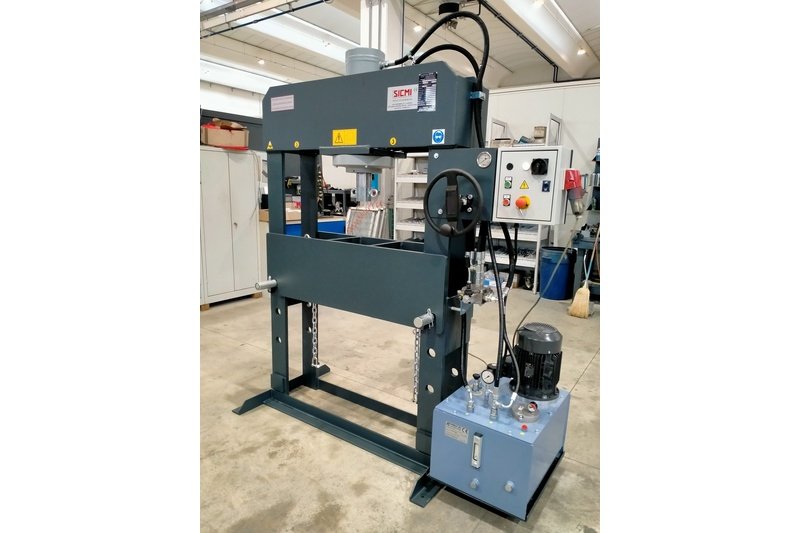

The PS-1 hydraulic workshop press is designed for sheet metal straightening, bushing insertion, and metal assembly operations. Its servomechanical handwheel enables highly precise cylinder positioning.
The cylinder is controlled through a servomechanical handwheel, allowing position adjustment with accuracy down to 0.01 mm.

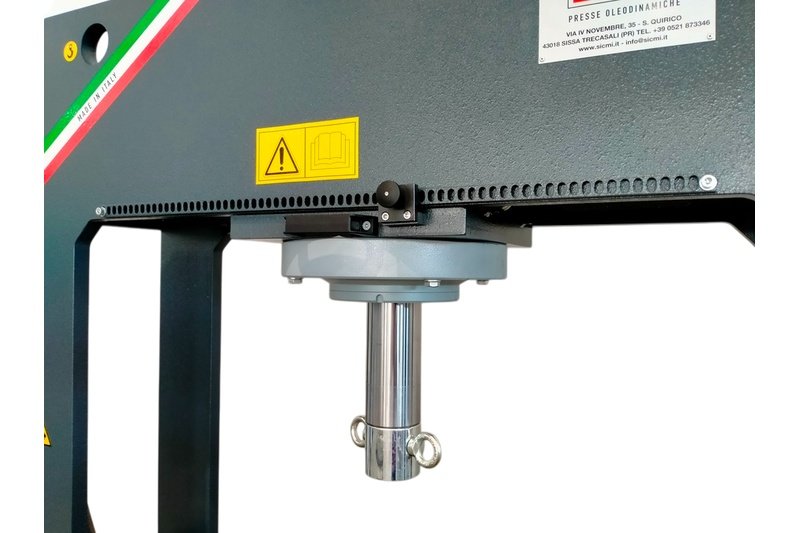

An optional transverse cylinder system allows the main cylinder to be positioned precisely over the workpiece, keeping the load centered and reducing the risk of damage to the cylinder.
The cylinder can be securely positioned and locked using the dedicated positioning system.

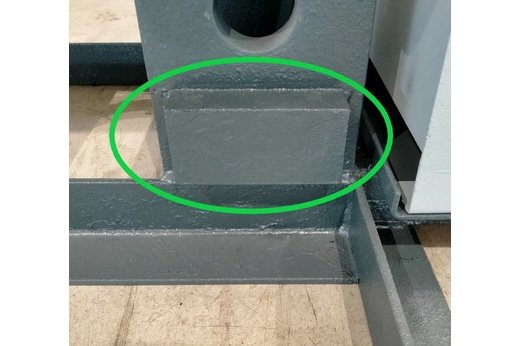

These metal blocks are positioned at the bottom end of the press and are completely welded to the machine structure.
Their function is to protect the operator's feet from any accidental fall of the work table.
.jpg)

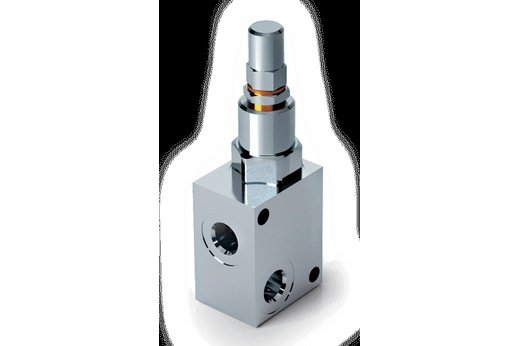

As a safety measure to guarantee the operator's safety and to safeguard the machine, a maximum pressure valve is installed inside the hydraulic control unit on all hydraulic presses produced by SICMI.

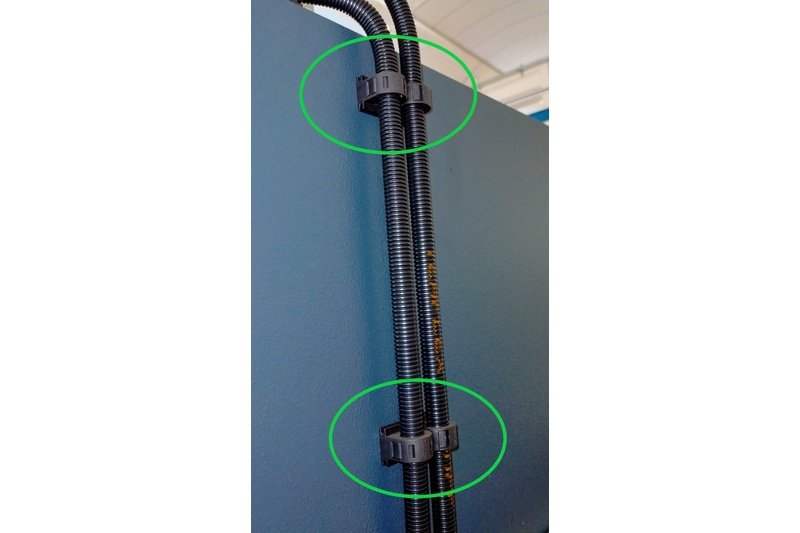

The tubes for the passage of the electrical cables are anchored to the press frame by means of special collars.
Unlike many competitors who use simple plastic ties that are destined to dry out and break quickly, these collars are made of highly resistant material and are screwed to the structure of the press.
_800x533.jpg)
.jpg)

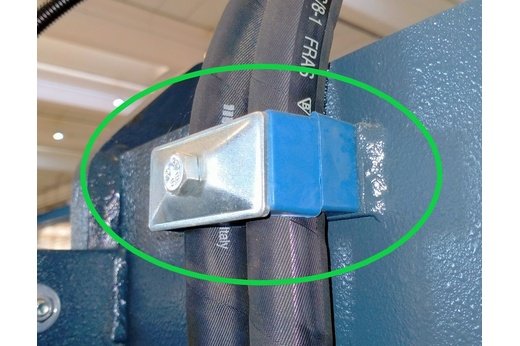

As a safety measure, the hydraulic hoses of all the presses produced by SICMI are firmly fixed to the machine frame using special collars which prevent any movement of the hydraulic hose.
These collars have the base welded to the frame, while the upper part is screwed.

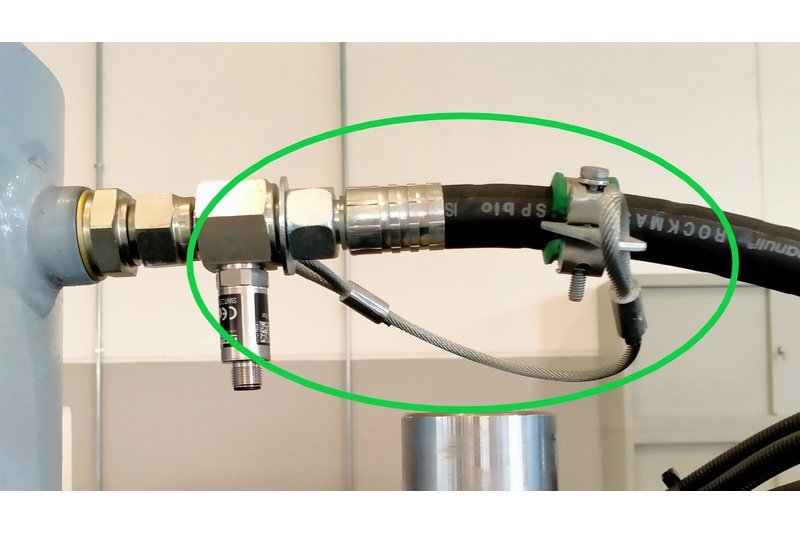

All SICMI hydraulic presses are equipped with the Stopflex hose retention system, designed to secure pressurized hydraulic hoses and prevent uncontrolled movement in the event of fitting failure.
The system helps reduce the risk of the whip effect, protects personnel and equipment, and limits hydraulic oil release into the working area.
_800x533.jpg)
.jpg)
24V Low-Voltage Control System

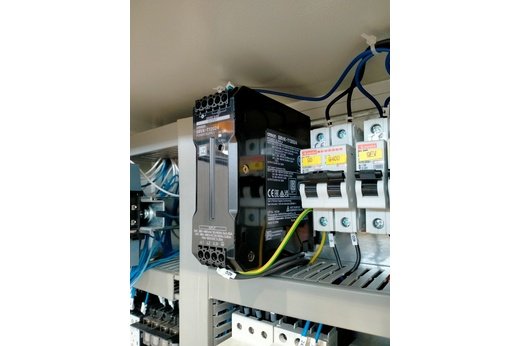

The press operates with a 400V three-phase power supply. For operator safety, a transformer inside the electrical panel reduces the control voltage to 24V, minimizing the risk of electric shock.
All SICMI hydraulic presses are equipped with anti-fall and anti-burst safety valves to protect the operator and machine.
| Specification | PSV 30 | PSV 50 | PSV 50M | PSV 70 | PSV 70M |
|---|---|---|---|---|---|
| Tonnage | 30 | 50 | 50 | 70 | 70 |
| A | 2050 | 2100 | 2100 | 2250 | 2250 |
| B | 1600 | 1700 | 1700 | 1900 | 1950 |
| C | 700 | 700 | 700 | 850 | 1000 |
| D | 900 | 900 | 900 | 1050 | 1050 |
| E | 180 | 210 | 200 | 250 | 240 |
| F | 920 | 900 | 900 | 900 | 900 |
| Y | FIXED | FIXED | 550 | FIXED | 650 |
| Stroke | 350 | 350 | 350 | 350 | 350 |
| Max Speed | 9 | 9 | 9 | 9 | 9 |
| Power (kW) | 0.75 | 0.75 | 0.75 | 2 | 2 |
| Weight (kg) | 430 | 650 | 720 | 1030 | 1220 |
