HYDROPNEUMATIC PRESSES MADE IN FRANCE

EMG hydropneumatic presses, also known as oleopneumatic presses, combine significant pressing force with high precision while operating solely on compressed air.

Product Introduction

Hydropneumatic Presses

High Power. High Precision. Pneumatic Efficiency.

EMG hydropneumatic presses, also known as oleopneumatic presses, combine significant pressing force with high precision while operating solely on compressed air. Efficient and economical, they are particularly suited to demanding workshop and production applications.

Powerful & Precise Operation

With force capacities reaching 100 tons, these presses are well suited for riveting, metal bending, and other forming operations. Each press frame is specifically engineered to match the power of its hydraulic-pneumatic cylinder.

Force up to 100 tons
High pressing precision
Compressed-air operation
Efficient and economical
Ideal for riveting and metal bending
Frame designed according to cylinder power

7T RANGE FRAME

7T Range Frame
Power* 6,910 → 7,820 kg
Total travel* 50 → 400 mm
Work trip* 6" 40 mm
Gooseneck depth 185 mm
Free height 400 mm
Weight 500 kg

13T RANGE FRAME

13T Range Frame
Power* 13,380 → 14,000 kg
Total travel* 50 → 300 mm
Work trip* 6" 40 mm
Gooseneck depth 220 mm
Free height 430 mm
Weight 750 kg

30T RANGE BUILDING

30T Range Building
Power* 28,300 → 30,650 kg
Total travel* 50 → 400 mm
Work trip* 6" 40 mm
Gooseneck depth 250 mm
Free height 500 mm
Weight 1200 kg

50T RANGE FRAME

50T Range Frame
Power* 45,900 → 47,600 kg
Total travel* 70 → 400 mm
Work trip* 6" 40 mm
Gooseneck depth 270 mm
Free height 580 mm
Weight 2,200 kg

75T RANGE BUILDING

75T Range Building
Power* 72,700 kg
Total travel* *100 → 300 mm
Work trip* 10" 16 mm
Gooseneck depth 270 mm
Free height 670 mm
Weight 4,500 kg

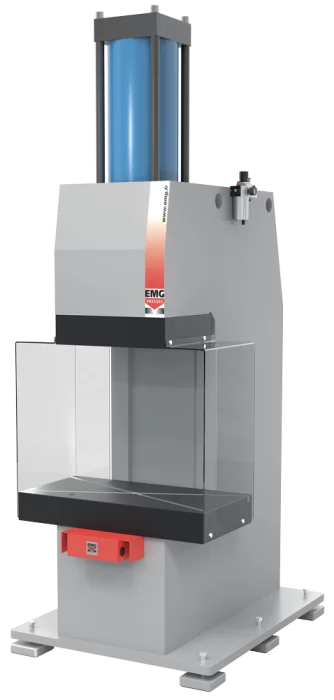

100T RANGE BUILDING

100T Range Building
Power* 98,500 kg
Total travel* *100 → 300 mm
Work trip* 8" 12 mm
Gooseneck depth 270 mm
Free height 710 mm
Weight 5,500 kg
