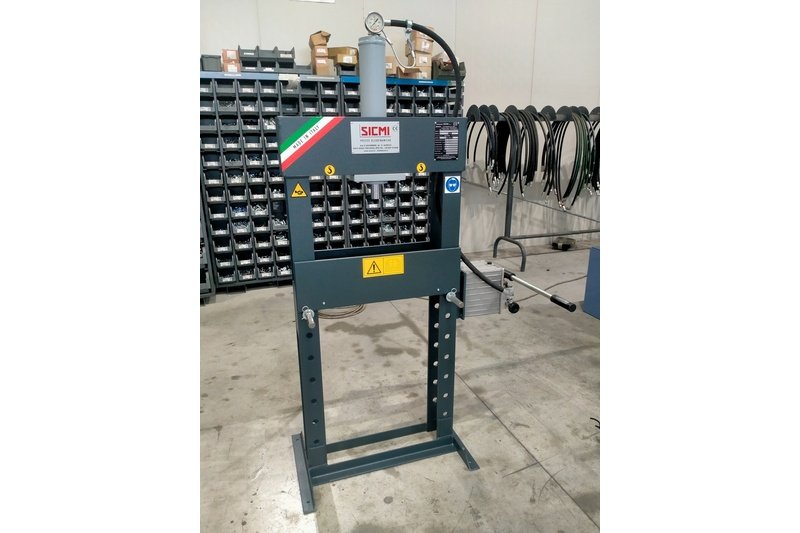

A practical hydraulic workshop press designed for small sheet metal operations, repairs, and occasional mechanical work. It offers reliable performance with simple manual operation at a competitive price.
The cylinder is operated by a two-speed hand pump, providing controlled movement for everyday workshop applications.
This economical version is particularly suitable for mechanical workshops that use a hydraulic press occasionally but still require a high-quality and reliable machine.
.jpg)
As a safety measure to guarantee the operator's safety and to safeguard the machine, a maximum pressure valve is installed inside the hydraulic control unit on all hydraulic presses produced by SICMI.
These metal blocks are positioned at the bottom end of the press and are completely welded to the machine structure.
Their function is to protect the operator's feet from any accidental fall of the work table.
| Specification | PSM 20 NC | PSM 40 NC |
|---|---|---|
| Tonnage | 20 | 40 |
| A | 1800 | 2050 |
| B | 1200 | 1400 |
| C | 500 | 700 |
| D | 520 | 900 |
| E | 145 | 210 |
| F | 825 | 900 |
| X | FIXED | FIXED |
| Stroke | 160 | 350 |
| Approach Speed | – | – |
| Working Speed | – | – |
| Power (kW) | Manual | Manual |
| Weight (kg) | 170 | 370 |
