MANUAL PRESSES KNEE PADS MADE IN FRANCE

The EMG premium range of manual toggle presses is designed for industrial precision, reliability, and ergonomic operation.

Product Introduction

Manual Presses Knee Pads

The EMG premium range of manual toggle presses is designed for industrial precision, reliability, and ergonomic operation. With a robust, maintenance-free construction, these presses are suitable for a wide range of workshop and assembly applications.

Key Features

Manual toggle mechanism for high force at the end of the stroke
Simple and ergonomic operation
Robust, maintenance-free construction
Stable base for secure bench-top use
Suitable for assembly, cutting, crimping, and small bending operations
Flexible solution for applications requiring significant travel and working clearance
Highly customizable with various options

Available Range

Bench-Top Toggle Presses
Capacity: 500–2,000 kg
Designed for general workshop and bench-top applications, with maximum force achieved at the end of the stroke.

High-Capacity Toggle Presses
Capacity: 700–2,000 kg
Designed for applications requiring higher pressing capacity, greater travel, and working clearance.

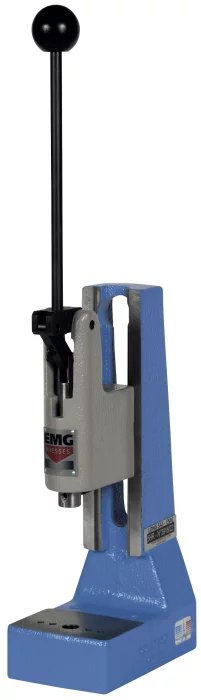

5 HR

5 HR
Power 500 kg
Stroke 50 mm
Swan-neck depth 72 mm
Clear height 42 ↔ 185 mm
Weight 9 kg

7 HR

5 HR
Power 700 kg
Stroke 40 mm
Swan-neck depth 95 mm
Clear height 35 ↔ 260 mm
Weight 25 kg

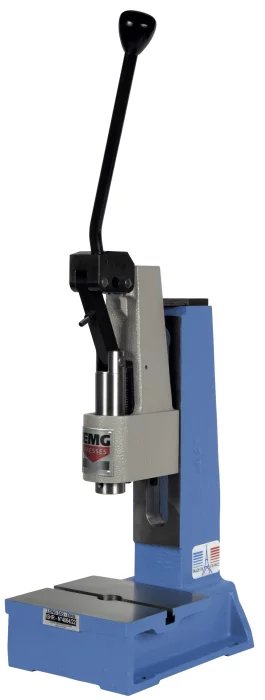

15 HR

5 HR
Power 1500 kg
Stroke 30 or 60 mm
Swan-neck depth 102 mm
Clear height 60 ↔ 250 mm
Weight 32 kg

15 HR

5 HR
Power 2000 kg
Stroke 60 mm
Swan-neck depth 190 mm
Clear height 120 ↔ 280 mm
Weight 65 kg

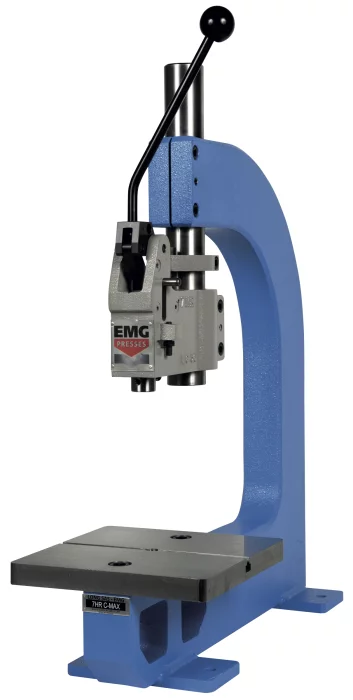

7 HR C-MAX

5 HR
Power 700 kg
Stroke 40 mm
Swan-neck depth 350 mm
Clear height 80 ↔ 270 mm
Weight 95 kg

15 HR LP

5 HR
Power 1500 kg
Stroke 30 or 60 mm
Swan-neck depth 230 mm
Clear height 220 ↔ 280 mm
Weight 55 kg

20 HR LP

5 HR
Power 2000 kg
Stroke 60 mm
Swan-neck depth 250 mm
Clear height 250 ↔ 275 mm
Weight 70 kg
