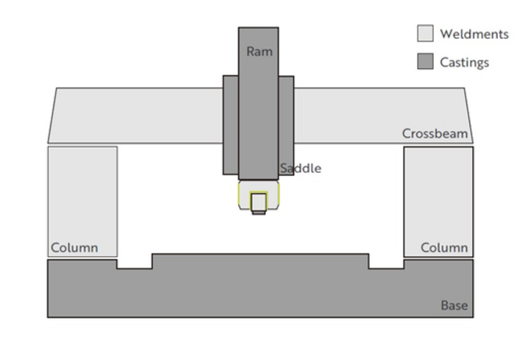

U-shaped force flow structure

One-piece U-shaped and high rigid structure enhances long-term accuracy and stability thanks to the shortest transmission of the force flow and evenly distributed cutting force.

The ram is made by ductile iron for high rigidity and vibration damping. The machining accuracy and stability could be increased.



X/Y axis driven by linear motor

Linear motor provides excellent dynamics and static rigidity. The rapid feedrate of the axis is up to 60m/min and the acceleration is up to 0.5G ~ 0.7G. The structure is simple and easy to maintain without transmission power loss

Z-axis driven by double ball screws with innovative hollow water cooling technology

Z-axis is driven by double ball screws which could ensure concentric of the moving part center and  the weight center so that the vibration could be eliminated. Moreover, it is equipped with hollow water cooling system for precise temperature control and thermal deformation control


Two-axis head driven by direct drive motor

Excellent surface finish contour could be enhanced thanks to the high torque direct drive motor system of two-axis heads.Small size appearance is suitable for complex curved surface machining and the advantages include low error, high resolution and high speed.



Optimized working area

Heightened column design provides larger Z-axis travels which is perfect for mold makers
