TMV-1350A

Feature

The Tongtai TMV-1350A is a Vertical Machining Center designed for heavy-duty machining of large workpieces. Its high-rigidity cast iron structure, large boxways, and Z-axis counterbalance system provide exceptional stability and maintain machining accuracy during demanding cutting operations.

With 1,350 × 750 × 700 mm axis travel and a 1,300 kg table load capacity, the TMV-1350A is equipped with a BT-50 spindle, 24-tool magazine, and dual screw conveyors for efficient chip evacuation. Its centralized maintenance design further improves serviceability, making it an ideal solution for high-productivity and heavy-duty manufacturing applications.

Product Introduction

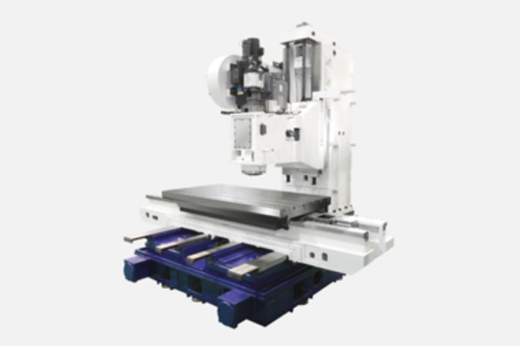

Rigid Boxway Design

The column and base casting is optimized through Finite Element Analysis (FEA) to ensure superior static and dynamic rigidity. All three axes feature large-scale boxways, and the Y-axis is supported by a robust four-guideway design, effectively eliminating table overhang deformation during heavy-duty machining of large workpieces

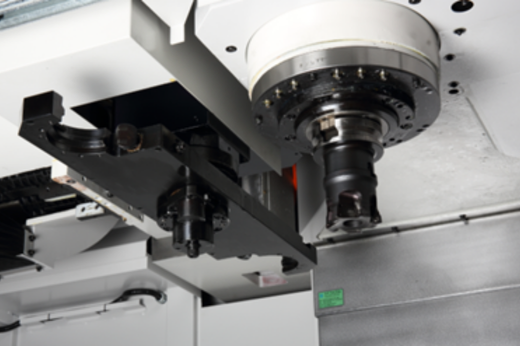

High-Efficiency Machining

Featuring a standard BT-50 belt-drive spindle, with an optional high-torque gearbox spindle delivering up to 731 Nm to meet low-speed, heavy-duty cutting demands. The roller-cam type tool changer provides stable tool clamping, low noise, and high precision, achieving a rapid Tool-to-Tool (T-to-T) time of 5.1 seconds to help extend spindle operational life.

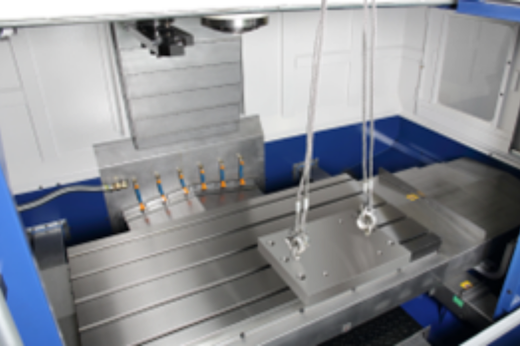

Efficient Operations

Featuring a wide door opening to facilitate seamless overhead crane loading and large workpiece handling. The system is equipped with dual screw conveyors and a bed flushing system to ensure rapid removal of high-volume chips, complemented by a 90-degree swiveling control panel and centralized maintenance components at the rear-left of the machine to significantly optimize routine inspection efficiency.
