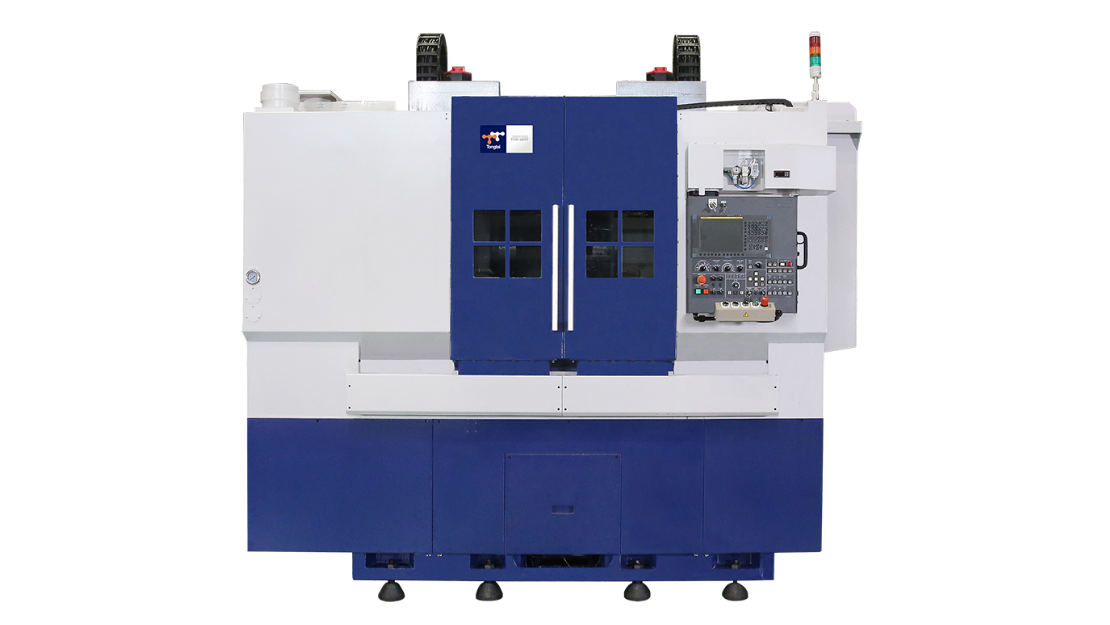

The TVW-22DT Vertical Turning Lathe is designed for high-precision wheel rim machining and high-volume production.
Featuring hardened box ways with precision hand scraping, it delivers excellent rigidity and positioning accuracy during heavy-duty cutting. Its dual-turret simultaneous machining and vertical configuration reduce cycle times while minimizing deformation of thin-walled wheel rims.
The steep-angle chip evacuation system ensures rapid chip removal, reducing downtime and supporting efficient, continuous production.
Large-scale hardened box ways with heat treatment and precision grinding provide high rigidity for heavy-duty cutting. Turcite-B lining and precision hand scraping ensure smooth movement, effective lubrication, and stable machining accuracy during long-term, high-load operation.
The dual-turret design enables simultaneous inner and outer diameter machining, allowing multiple operations in a single setup and reducing cycle time. Combined with the vertical structure, it minimizes gravity-induced deformation of thin-walled wheel rims while maintaining high precision and surface quality.
The wide-slope, steep-angle bed design with an integrated chip conveyor quickly removes chips and prevents accumulation. This reduces cleaning downtime and supports stable, continuous production during heavy rough machining.
| Item | Value |
| Wheel Size | O.D.: 14-24 inch l Height: 6-12 inch |
| X-Axis Travel | 450 mm |
| Z-Axis Travel | 450 mm |
| X-Axis Rapid Traverse | 20 m/min |
| Z-Axis Rapid Traverse | 20 m/min |
| Spindle Nose | A2-11 |
| Spindle Speed | 2500 rpm |
| Spindle Motor | 45/55 kW |
| Chuck O.D. | Ø160 mm |
| Tool Capacity | 6+6 pcs |
| Machine Width | 3,520 mm |
| Machine Depth | 4,240 mm |
| Machine Height | 3,170 mm |
| Machine Weight | 15,500 kg |
