The APEC GMI1000 is a high-speed 5-Axis Gantry Vertical Machining Center built for precision machining of large, complex components in the aerospace, oil & gas, automotive, mold & die, and precision engineering industries. Its Box-in-Box rigidity, vibration damping, and long-term machining stability.
Featuring XY linear motor drives, Heidenhain optical scales, and an 18,000 rpm spindle, the GMI1000 delivers outstanding accuracy, dynamic performance, and surface finish. With 1,100 × 1,400 × 900 mm travel, it is ideal for high-speed, simultaneous 5-axis machining of complex parts requiring superior precision and productivity.

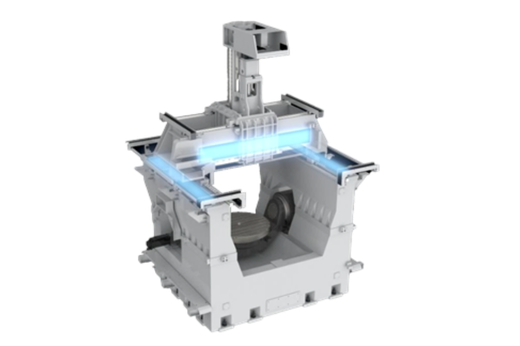

The box-in-box construction integrates inner and outer box frames to enhance structural stiffness and torsional stability, ensuring consistent accuracy and minimal deflection under demanding cutting conditions
APEC’s proprietary linear motors provide rapid acceleration, smooth motion, and precise positioning, enabling high-speed, high-accuracy machining performance.
Heidenhain optical scales minimize mechanical transmission errors, ensuring precise servo control and superior contouring performance

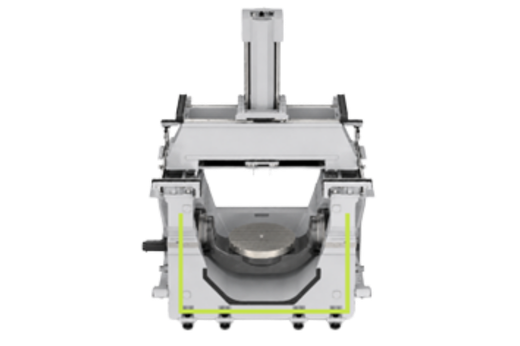

The base and columns form a closed-frame design, providing exceptional rigidity that reduces vibration and enhances machining stability and precision.
Combining high rigidity with excellent vibration damping, the mineral casting base provides a stable machining platform that enhances precision and surface quality.

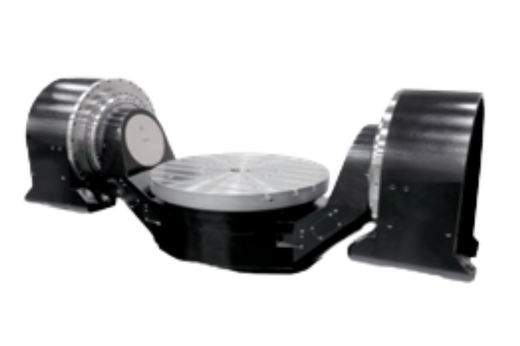

The A-axis dual gear drive delivers high torque, rigidity, and precise positioning for heavy workpieces, while the C-axis direct drive (DD) ensures zero backlash, high-speed response, and reliable, low-maintenance operation.

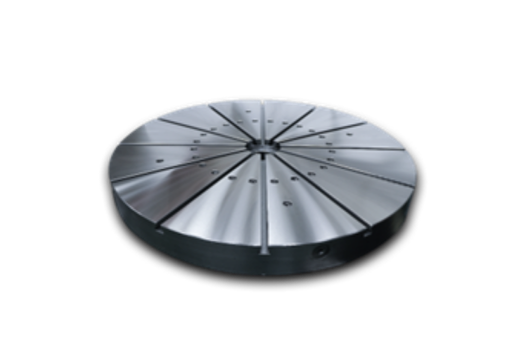

The Ø1000 table provides a spacious machining platform, accommodating large workpieces and expanding machining capability.
| SPECIFICATION | ||
| SPECIFICATION | UNIT | GM1000 |
| X-axis | mm | 1,100 |
| Y-axis | mm | 1,400 |
| Z-axis | mm | 900 |
| Rapid feedrate | m /min | X/Y/Z=60/60/40 |
| Table size ( Diameter ) | mm | Ø1,000 |
| Max. table load | kg | 2,000 |
| Spindle taper | HSK63A | |
| Spindle speed | rpm | 18,000 |
| Spindle power( S1 / Max. ) | kW | 35/40 |
| Spindle torque(S1/Max.) | Nm | 95/109 |
| Tool shank | pcs | 40T |
| Tool shank | mm | 510 |
| Max. tool diameter with adjacent tool | mm | Ø75 |
| Max. tool diameter without adjacent tool | mm | Ø120 |
