Feature

The Tongtai QVM-610AII is a Vertical Machining Center designed for high-efficiency mass production of small- to medium-sized components. Equipped with an Automatic Pallet Changer (APC), it minimizes loading and unloading time, maximizing machine utilization and overall productivity.

Featuring a moving-column structure, three-point support design, and enhanced three-axis rigidity, the QVM-610AII delivers stable machining performance and superior surface finishes. With 610 × 410 × 510 mm axis travel and a high-speed tool-changing system, it is an ideal solution for automotive, motorcycle, electronics, and other high-volume manufacturing applications.

Product Introduction

High-Rigidity Structure & Extended Travel

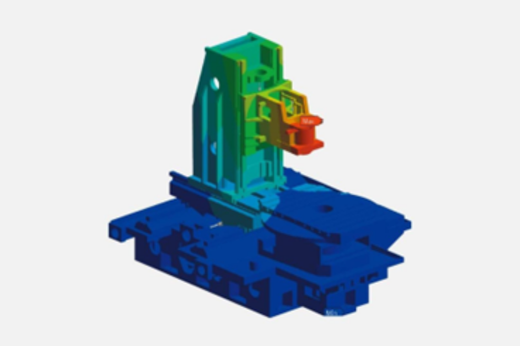

The machine structure is optimized through finite element analysis (FEA) to achieve high rigidity and excellent dynamic performance. With a Z-axis travel of 510 mm, the machine is well suited for machining tall workpieces and supporting fourth-axis applications, while maintaining outstanding structural stability.

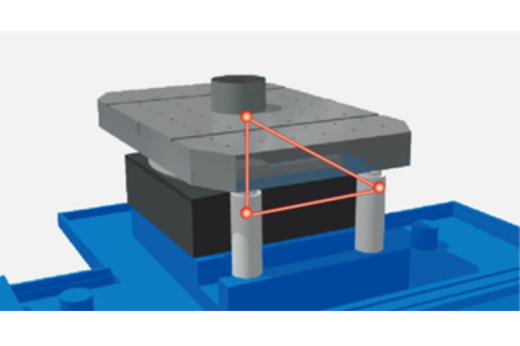

Three-Point Clamping Worktable

mechanism (M448348). The single-side, three-point support and clamping design effectively enhances the worktable’s lateral and axial stability. This ensures superior surface quality and improved surface finish performance during machining.

High-Speed & Energy-Saving APC

The Automatic Pallet Changer (APC) system utilizes a roller cam mechanism driven by an electric motor, offering low starting torque characteristics that effectively reduce pallet exchange time. Compared with conventional hydraulically driven systems, it provides both energy efficiency and lower maintenance requirements.
Max. Load：400 kg × 2
Pallet Exchange Time：4 sec（200 kg load)
